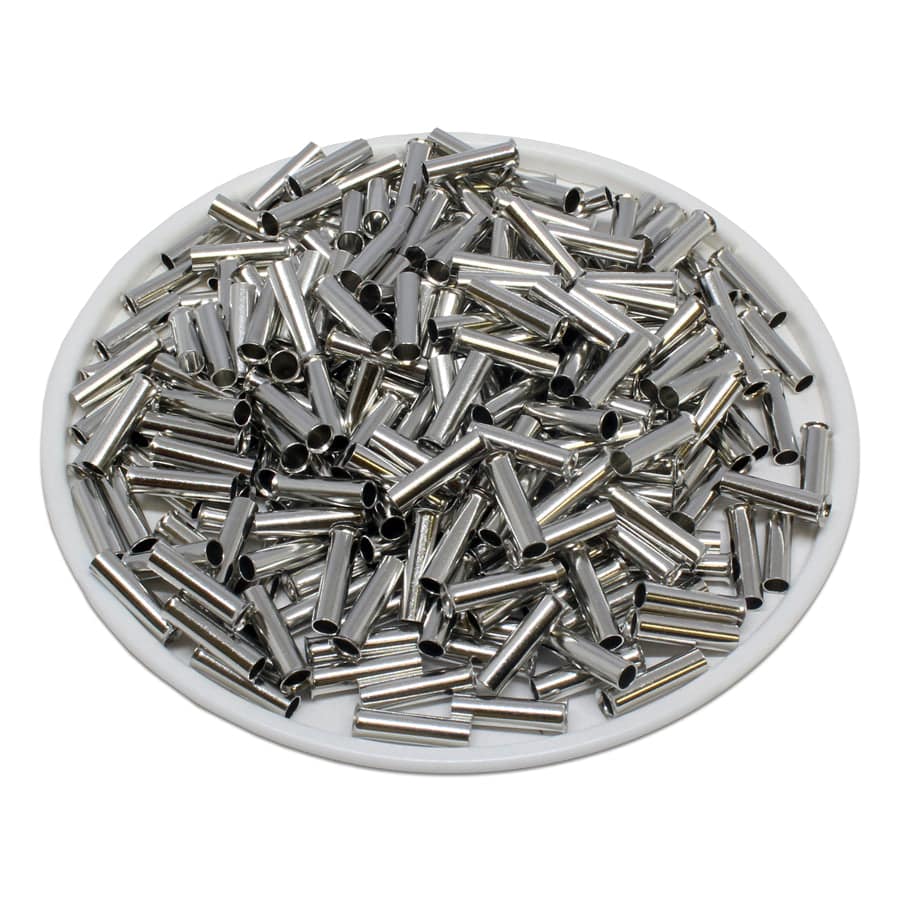

N25030 - 14AWG (30mm Pin) Non Insulated Ferrules
Original price
$44.64
-
Original price
$44.64
Original price
$44.64
$44.64
-
$44.64
Current price
$44.64
SKU N25030
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Technical Drawing:
ABB: XUSG01974
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Range: | 14 AWG (2.50mm2) |
| Material: | Tin-Plated Copper |
| L1: | 30mm (1.18") |
| D: | 2.6mm (0.10") |
| D1: | 2.1mm (0.08") |
| D2 | 3.3mm (0.13") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 30A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:ABB: XUSG01974
Documents
Click to view product spec sheet:
