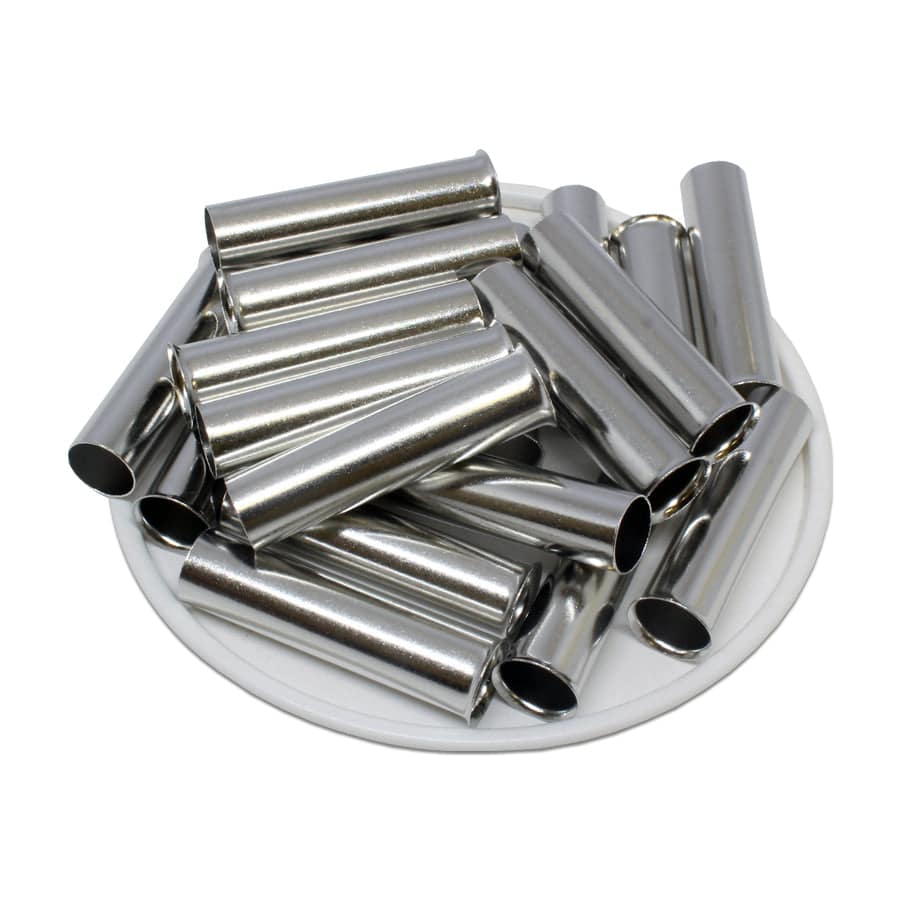

2 AWG (32mm Pin) Non Insulated Ferrules

$11.80
SKU N350032
Piece Quantity

PRODUCT DESCRIPTION

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

DIMENSIONS AND FEATURES
Wire Size: 2 AWG UL Approved: Yes
Material: Tin-Plated Copper CE Certified: Yes
L1: 32mm (1.26") RoHS Compliant: Yes
D: 8.4mm (0.331") Max Electrical Rating: Up to 2000V
D1: 8mm (.315") Max Electrical Current: 170A
D2: 10.2mm (.402")

TECHNICAL DRAWING

Cross Reference Parts:

ABB: XUSG02003
American Electrical: 1232135
Burndy: YF0232UI
Eclipse: 701-079
Panduit: F86-32-C
Thomas Betts: F9036
Weidmuller: 9004200000
ZF: V3AE9085

Click to view data sheet

How to Crimp a Wire Ferrule?
