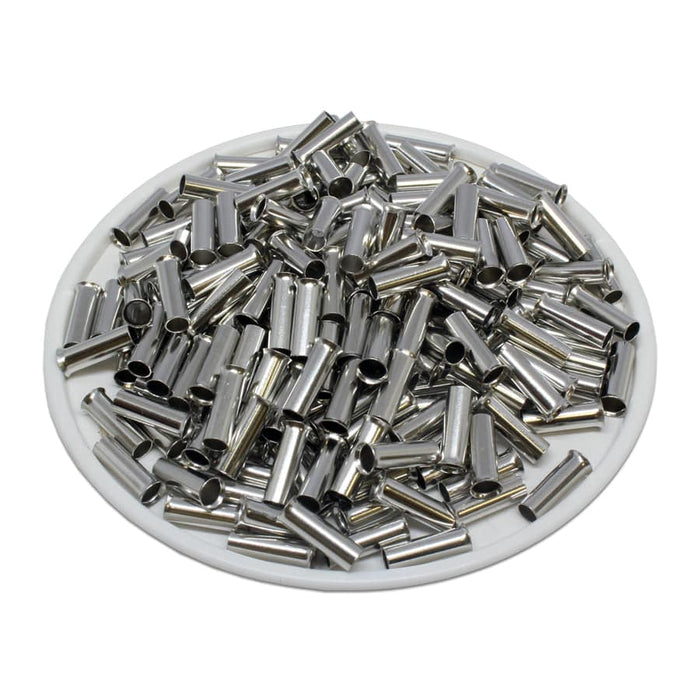

N40010 - 12 AWG (10mm Pin) Non Insulated Ferrules

Original price $22.83 - Original price $22.83
Original price
$22.83
$22.83 - $22.83
Current price $22.83
SKU N40010
Availability:
in stock, ready to be shipped
Piece Quantity: 1000 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 12 AWG (4.00mm2)
Material: Tin-Plated Copper
L1: 10mm (0.394")
D: 3.2mm (0.126")
D1: 2.8mm (0.11")
D2 3.9mm (0.15")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 35A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:


Cross References

Cross Reference Parts:

ABB: 30457915
Altech Corp: 2225.0
American Electrical: 12910400
Burndy: YF1209UI
Eclipse: 701-057
