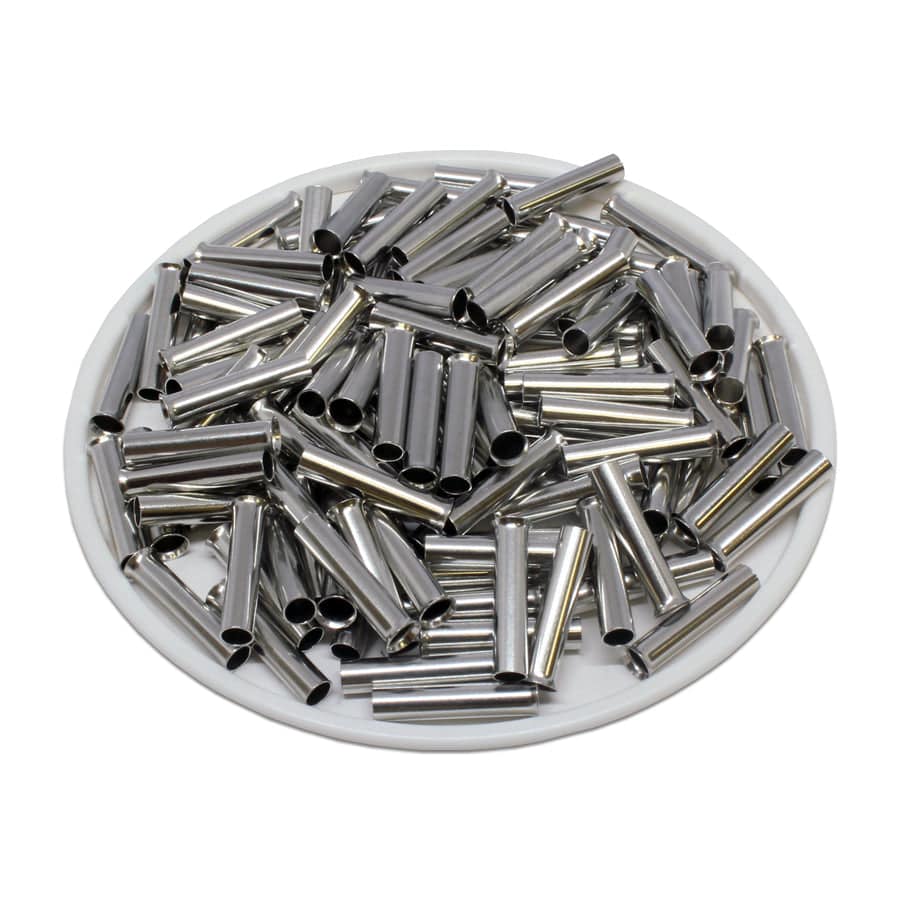

N40015 - 12 AWG (15mm Pin) Non Insulated Ferrules

$27.17
SKU N40015
Piece Quantity

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 12 AWG (4.00mm2)
Material: Tin-Plated Copper
L1: 15mm (0.59")
D: 3.2mm (0.126")
D1: 2.8mm (0.11")
D2 3.9mm (0.15")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 35A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:


Cross References

Cross References:

ABB: 30458003
Altech Corp: 2226.0
American Electrical: 121210400
Burndy: YF1212UI
Cembre: KE412ST
Crimp Supply: 13A12009
Eclipse: 701-006
Elecdirect: FERN-12-12M
Greenlee: 74/12VZ
ITC: 004.012
McMaster-Carr: 9681K29
Phoenix Contact: 3200315
SPC Technology: SPC4547 84N2081
Thomas Betts: F9016
Weidmuller: 244100000
ZF: V3AE9063
