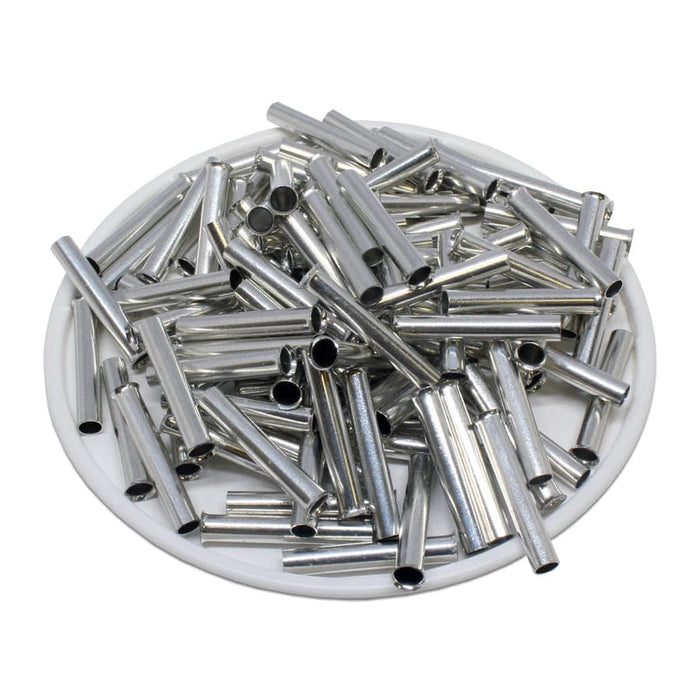

N40020 - 12 AWG (20mm Pin) Non Insulated Ferrules

Original price $11.27 - Original price $11.27
Original price
$11.27
$11.27 - $11.27
Current price $11.27
SKU N40020
Availability:
in stock, ready to be shipped
Piece Quantity: 250 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 12 AWG (4.00mm2)
Material: Tin-Plated Copper
L1: 20mm (0.787")
D: 3.2mm (0.126")
D1: 2.8mm (0.11")
D2 3.9mm (0.15")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 35A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:


Cross References

Cross References:

ABB: XUSG01978
American Electrical: XUSG01978
Greenlee: 74/20VZ
Panduit: F81-20-M
