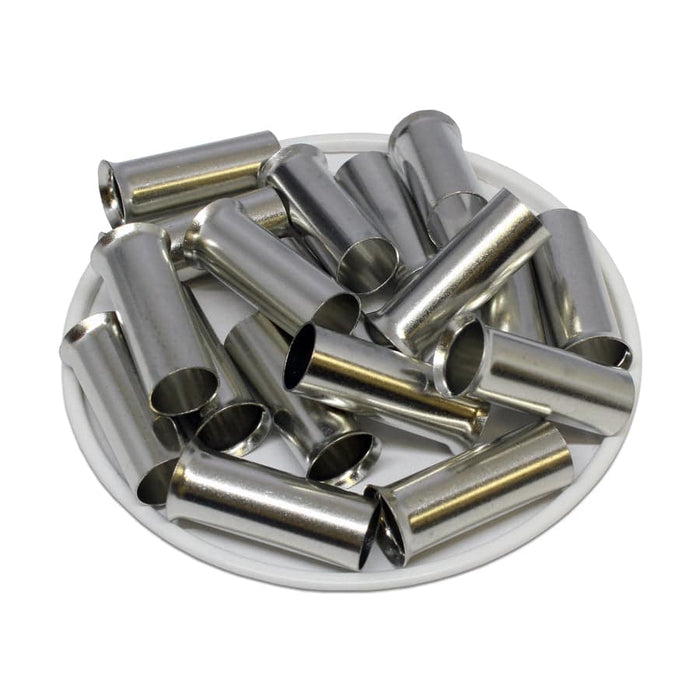

N420025 - True 1 AWG (25mm Pin) Non Insulated Ferrules

Original price $12.08 - Original price $12.08
Original price
$12.08
$12.08 - $12.08
Current price $12.08
SKU N420025
Piece Quantity: 50 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: True 1 AWG
L1: 25mm (0.98")
D: 9.4mm (0.37")
D1: 8.8mm (0.35")
D2: 11.1mm (0.44")
Material: Tin Plated Copper
UL Approved: No
CE Certified: Yes
RoHS Compliant: Yes
Max Electrical Rating: Up to 2000V
Max Electrical Current: 195A

Product Drawing:

Cross References

Cross Reference Parts:
None
