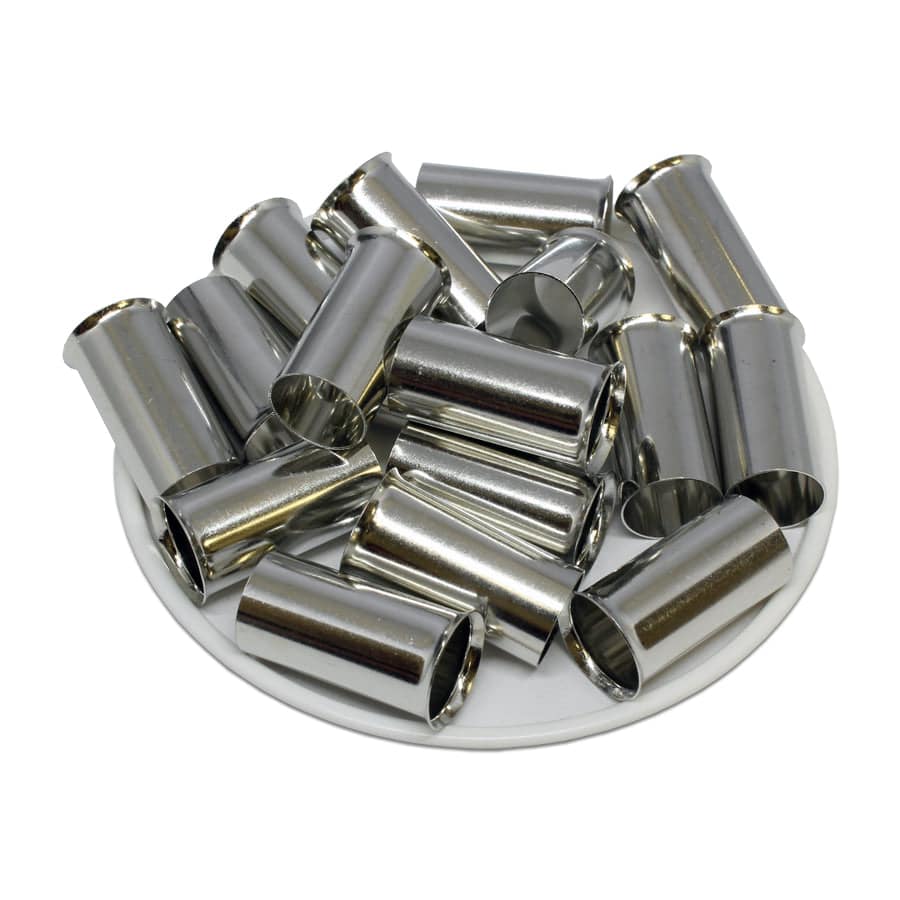

N500022 - 1 AWG (22mm Pin) Non Insulated Ferrules

$10.10
SKU N500022
Piece Quantity

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 1-1/0 AWG (50.00mm2)
Material: Tin-Plated Copper
L1: 22mm (0.86")
D: 10.8mm (0.42")
D1: 10.2mm (0.40")
D2 12.7mm (0.50")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 195A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:


Cross References

Cross References:

ABB: XUSG02006
American Electrical: 1222150
Burndy: YF0122UI
Greenlee: 80/22VZ
Panduit: F87-22-C
