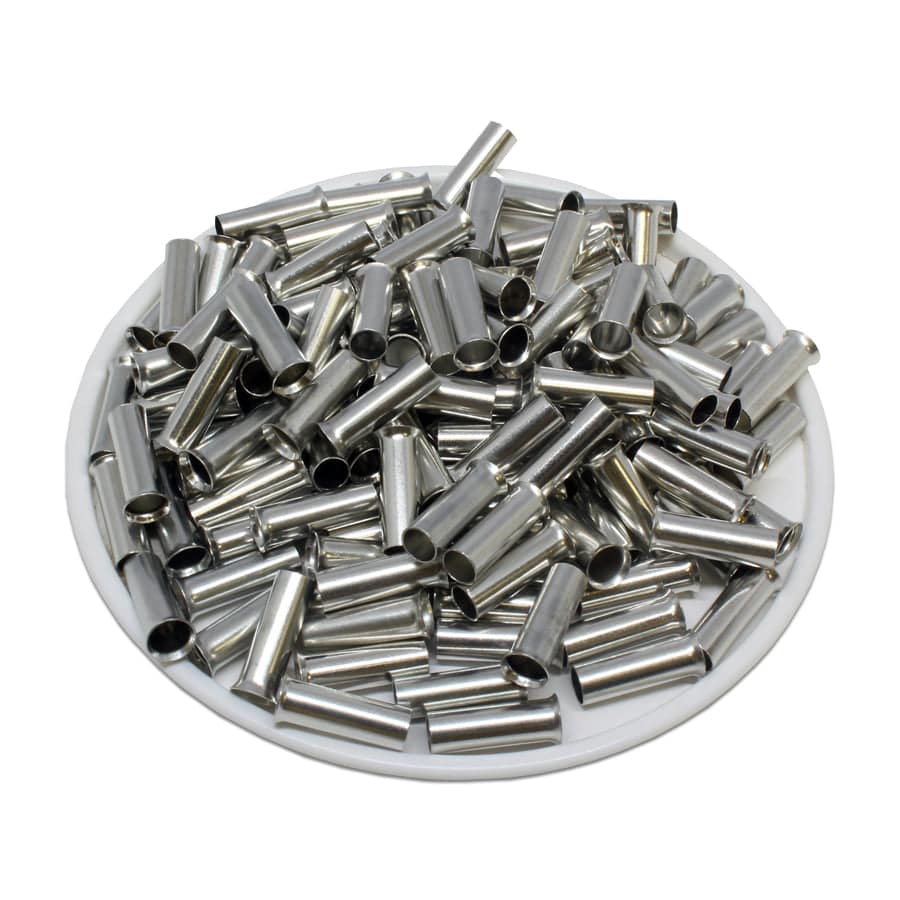

N60012 - 10 AWG (12mm Pin) Non Insulated Ferrules
Original price
$0.00
-
Original price
$6.84
Original price
$6.84
$0.00
-
$6.84
Current price
$6.84
SKU N60012
Availability:
in stock, ready to be shipped
Availability:
Out of stock
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Range: | 10AWG (6.00mm²) |
| Material: | Tin-Plated Copper |
| L1: | 12mm (0.47") |
| D: | 3.7mm (0.14") |
| D1: | 3.3mm (0.13") |
| D2: | 4.7mm (0.18") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 50A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:ABB: 30458221
Altech Corp: 2227.0
American Electrical: 121210600
Burndy Hubbell: 10097785 YF1012UI
Cembre: KE612ST
Eclipse: 701-061
Elecdirect: FERN-10-12B
Greenlee: 75/12VZ
ITC: 75/12VZ
McMaster-Carr: 9681K68 9681K32
Panduit: F82-12-M
Phoenix Contact: 3200328
SPC Technology: SPC4549 84N2083
WAGO: 216-108
Weidmuller: 191900000
ZF: V3AE9067
