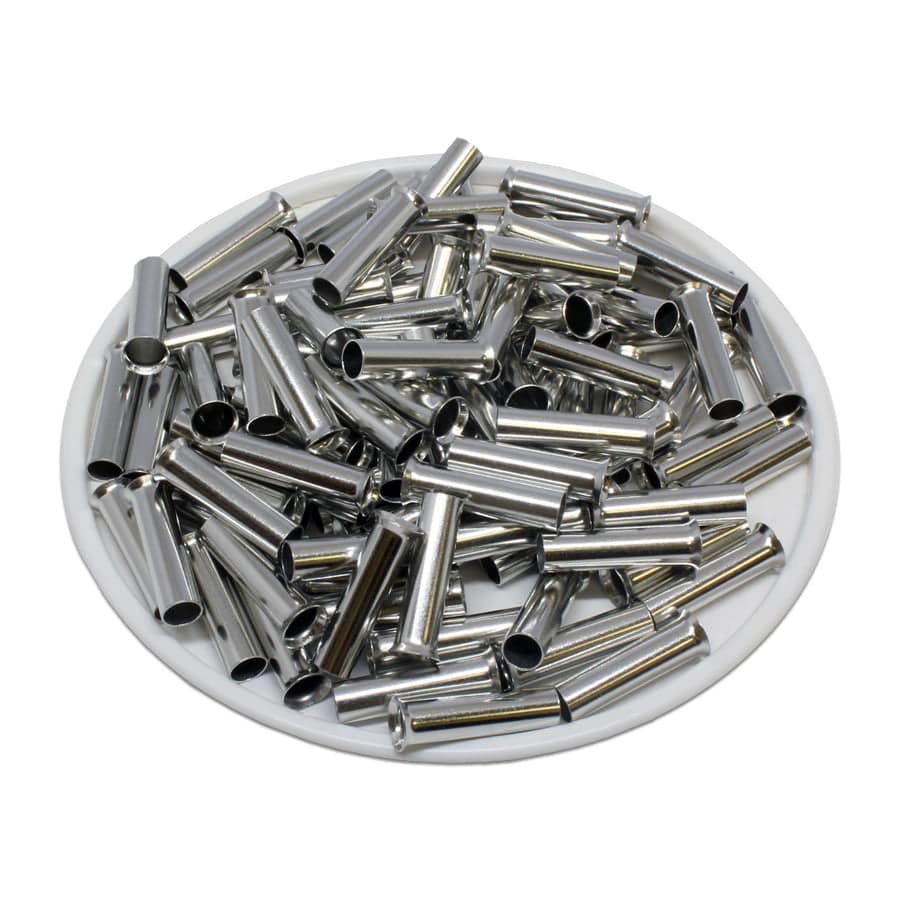

N60015 - 10 AWG (15mm Pin) Non Insulated Ferrules
Original price
$7.64
-
Original price
$7.64
Original price
$7.64
$7.64
-
$7.64
Current price
$7.64
SKU N60015
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Range: | 10 AWG (6.00mm²) |
| Material: | Tin-Plated Copper |
| L1: | 15mm (0.59") |
| D: | 3.7mm (0.14") |
| D1: | 3.3mm (0.13") |
| D2: | 4.7mm (0.18") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 50A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:ABB: 30458322
Altech Corp: 2388.0
American Electrical: 2388.0
Bizlink: TEMP-150065616
Burndy Hubbell: 10097786 YF1015UI
Crimp Supply: 13A12010
Eclipse: 701-062
Greenlee: 75/12VZ
Panduit: F82-12-M
Thomas Betts: F9020
Weidmuller: 124700000
ZF: V3AE9068
Documents
Click to view product spec sheet:
