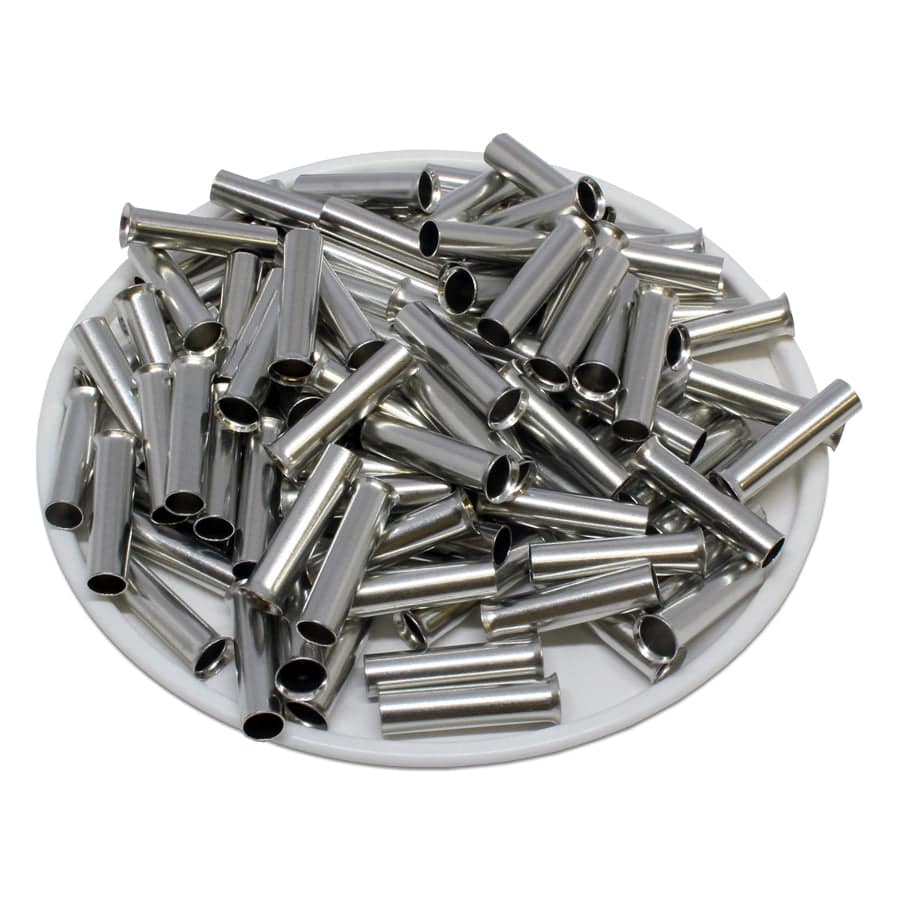

N60016 - 10 AWG (16mm Pin) Non Insulated Ferrules
Original price
$12.42
-
Original price
$12.42
Original price
$12.42
$12.42
-
$12.42
Current price
$12.42
SKU N60016
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Range: | 10AWG (6.00mm²) |
| Material: | Tin-Plated Copper |
| L1: | 16mm (0.63") |
| D: | 3.7mm (0.14") |
| D1: | 3.3mm (0.13") |
| D2: | 4.7mm (0.18") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 50A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:Cembre: KE616ST
Documents
Click to view product spec sheet:
