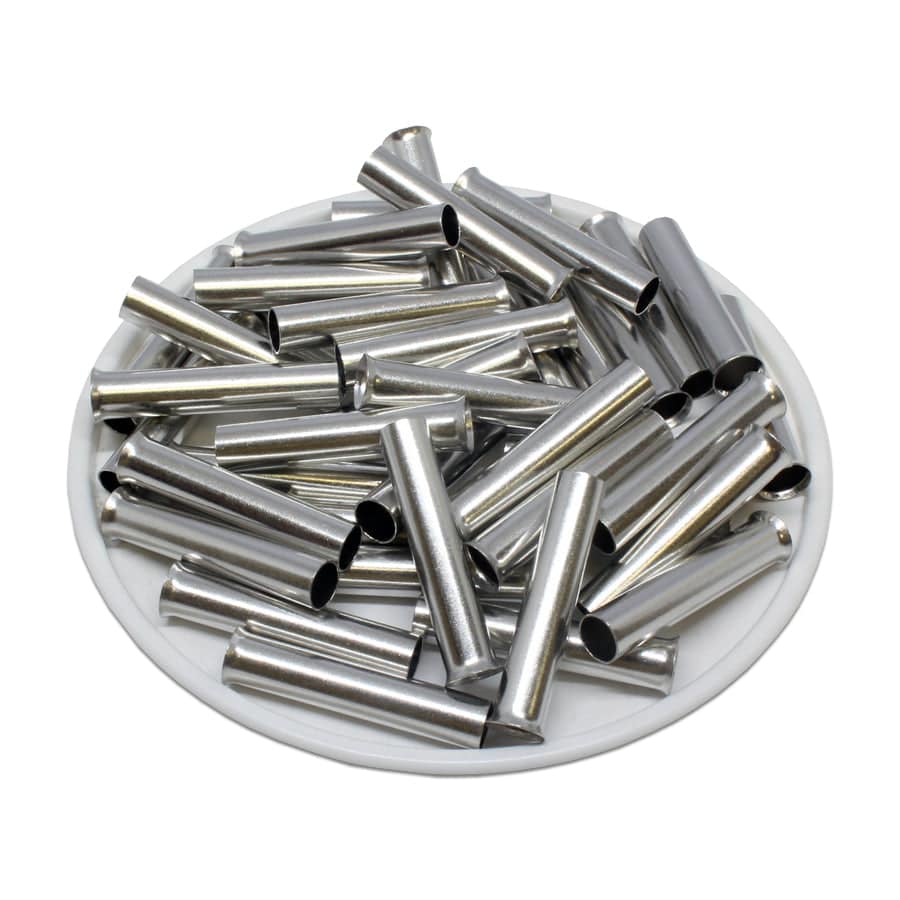

N60025 - 10 AWG (25mm Pin) Non Insulated Ferrules

$13.66
SKU N60025
Piece Quantity

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 10AWG (6.00mm2)
Material: Tin-Plated Copper
L1: 25mm (0.98")
D: 3.7mm (0.14")
D1: 3.3mm (0.13")
D2: 4.7mm (0.18")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 50A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:


Cross References

Cross References:

ABB: XUSG01981
Greenlee: 75/25VZ
