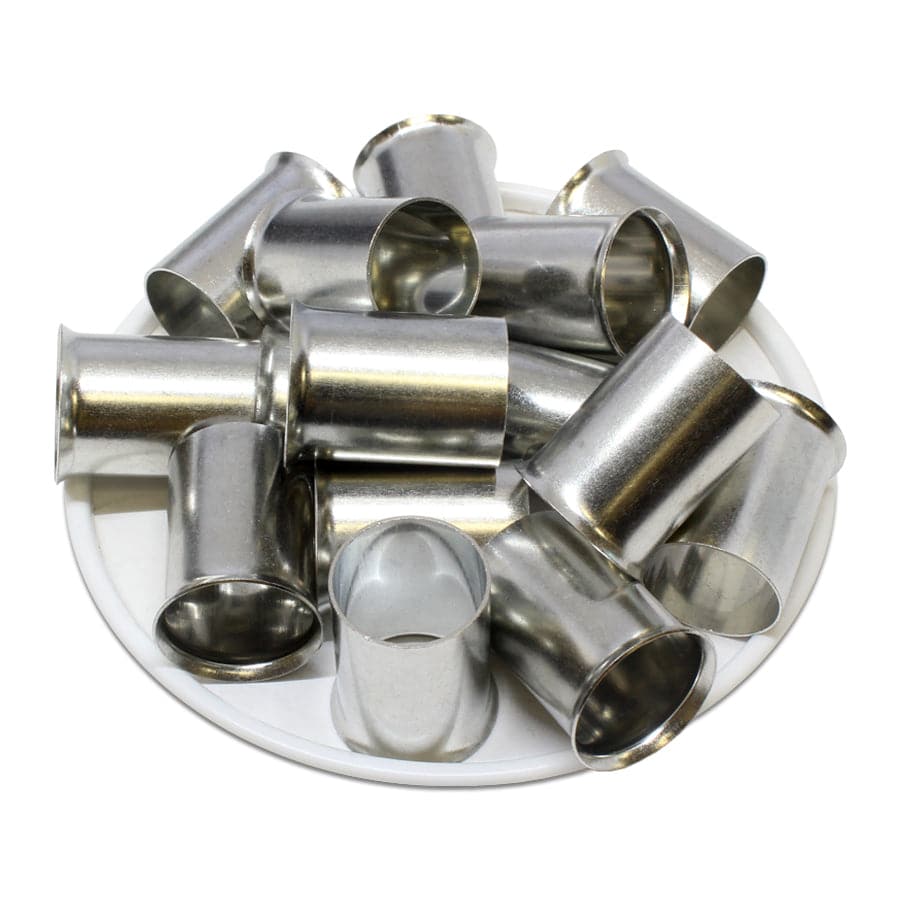

N700020 - 2/0 AWG (20mm Pin) Non Insulated Ferrules

Original price $18.64 - Original price $18.64
Original price
$18.64
$18.64 - $18.64
Current price $18.64
SKU N700020
Availability:
in stock, ready to be shipped
Piece Quantity: 50 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 2/0 AWG
L1: 20mm (.79")
D: 14.3mm (.563")
D1: 13.5mm (.531")
D2: 16.3mm (.641")
Material: Tin-Plated Copper
Max Electrical Rating: Up to 2000V
Max Electrical Current: 265A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes


Product Drawing:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
