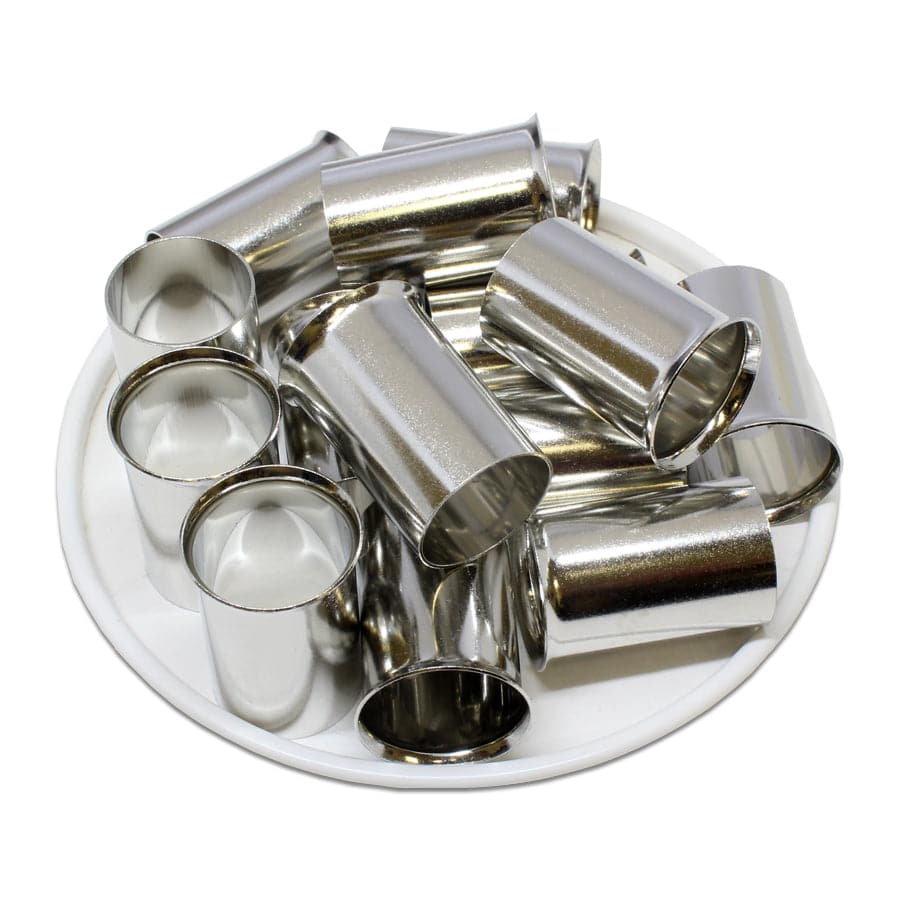

2/0 AWG (22mm Pin) Non Insulated Ferrules

$17.64
SKU N700022
Piece Quantity

PRODUCT DESCRIPTION

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

DIMENSIONS AND FEATURES
Wire Size: 2/0 AWG UL Approved: Yes
Material: Tin-Plated Copper CE Certified: Yes
L1: 22mm (.866") RoHS Compliant: Yes
D: 14.3mm (0.563") Max Electrical Rating: Up to 2000V
D1: 13.5mm (.531") Max Electrical Current: 265A
D2: 16.3mm (.641")

TECHNICAL DRAWING

Cross Reference Parts:
ABB:XUSG02010
Burndy:YF2/022UI
Greenlee:81/22VZ
McMaster-Carr:9681K136

Click to view data sheet

How to Crimp a Wire Ferrule?
