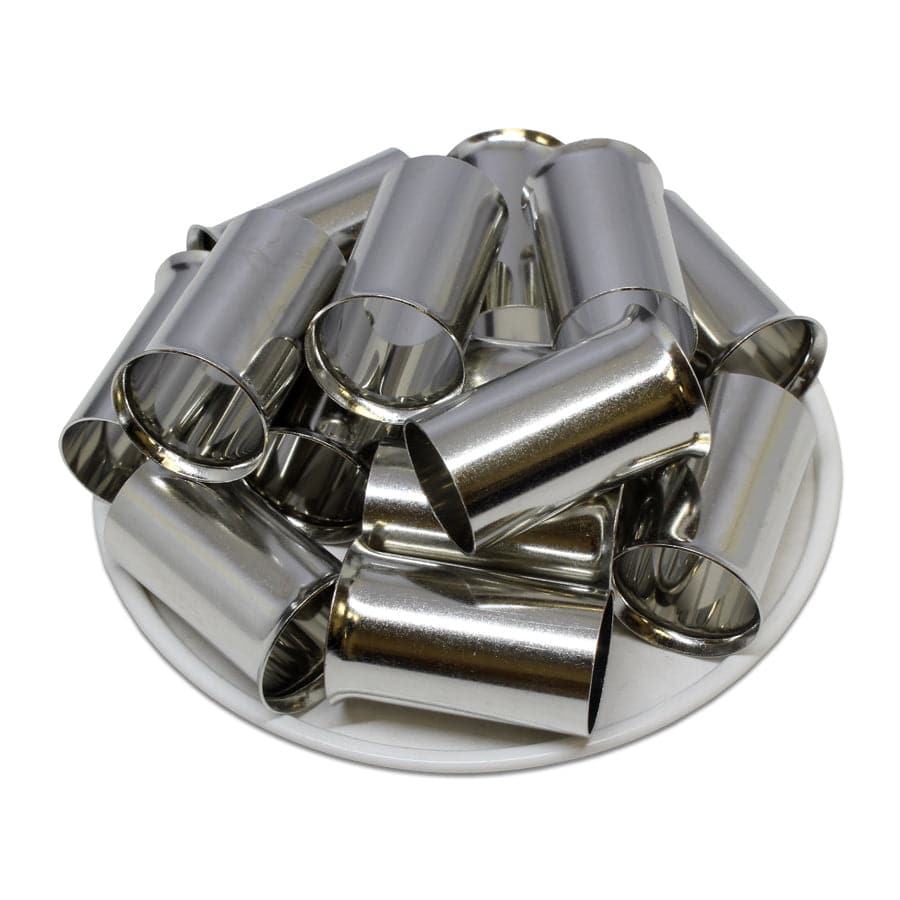

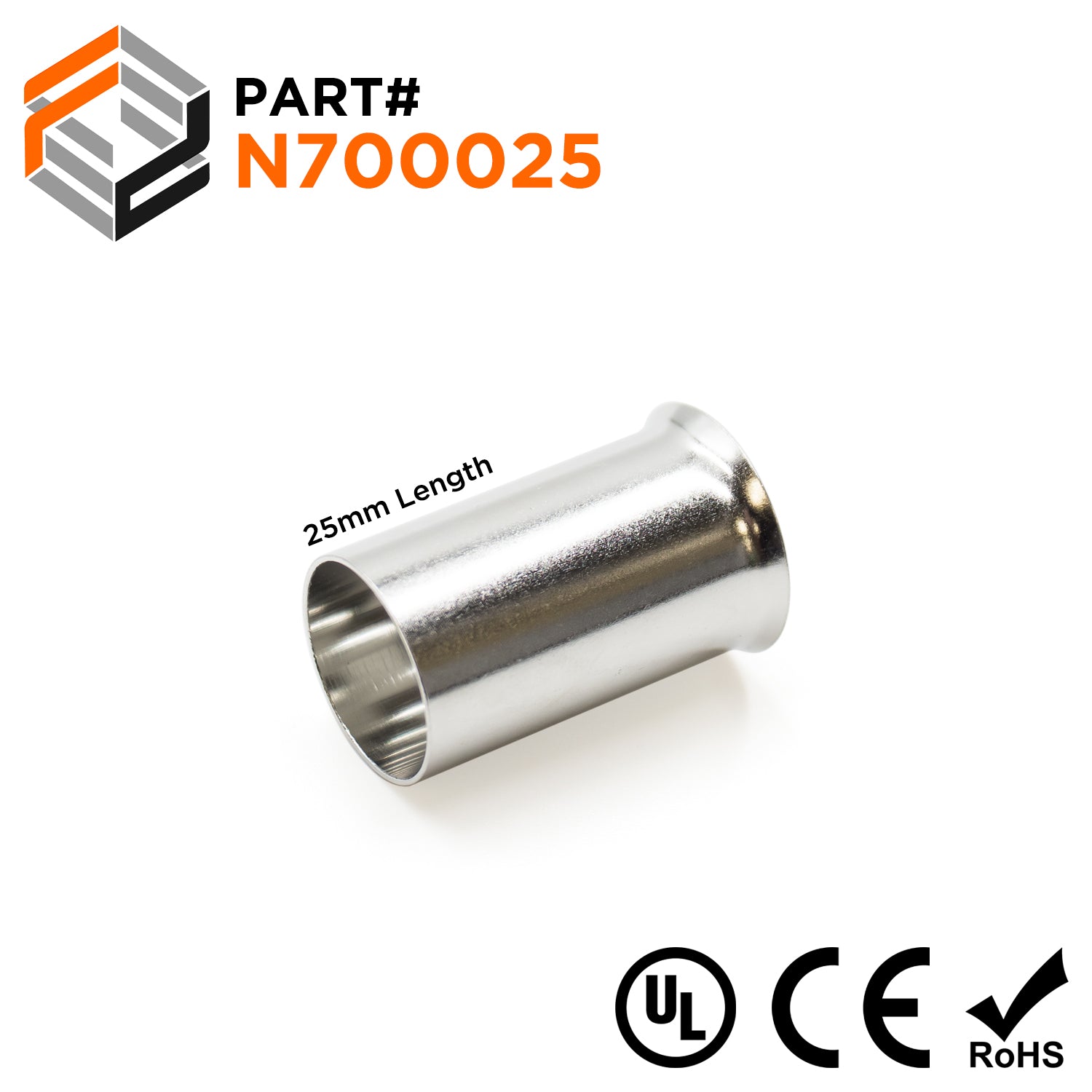

2/0 AWG (25mm Pin) Non Insulated Ferrules

$18.58
SKU N700025
Piece Quantity

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 2/0 AWG (70.00mm2)
Material: Tin-Plated Copper
L1: 25mm (0.98")
D: 14.3mm (0.56")
D1: 13.5mm (0.53")
D2 16.3mm (0.64")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 265A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:


Cross References

Cross References:

ABB: XUSG02011
Altech Corp: 2790.0
American Electrical: 1225170
Burndy: YF2/025UI
Crimp Supply: 13A12016
Elecdirect: FERN-2/0-25C
Greenlee: 81/22VZ
McMaster-Carr: 9681K77
Thomas Betts: F9040
Weidmuller: 9004230000
ZF: V3AE9089
