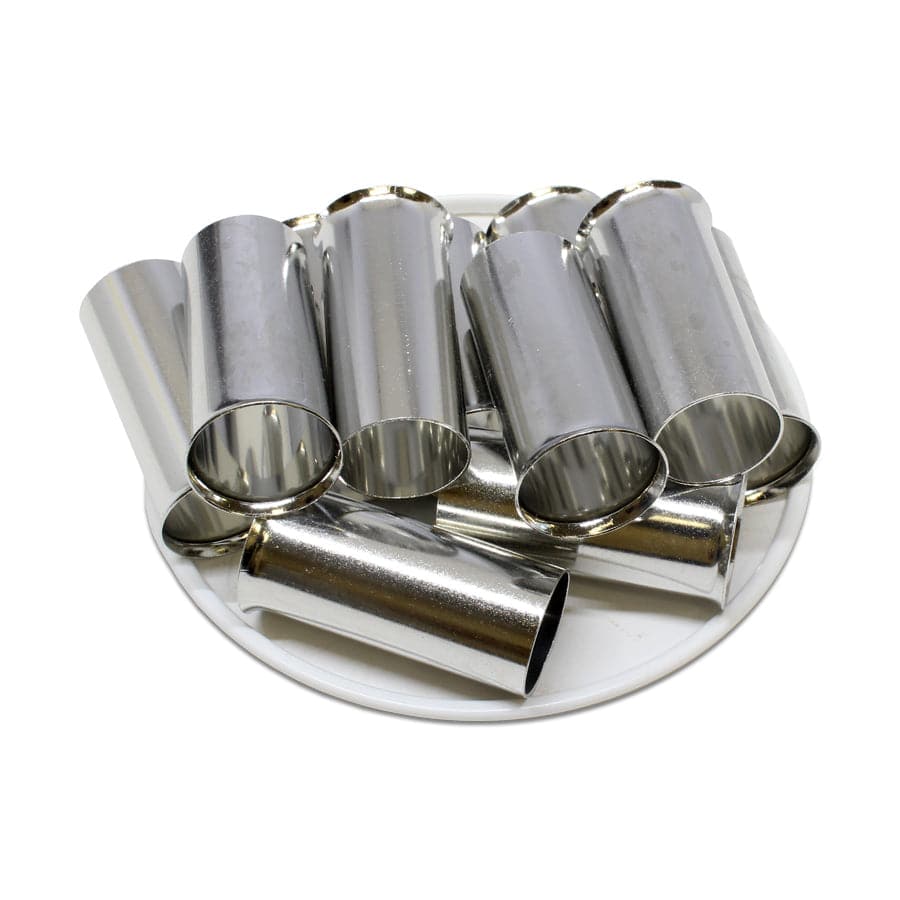

2/0 AWG (32mm Pin) Non Insulated Ferrules

$24.22
SKU N700032
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Range: 2/0 AWG (70.00mm2)
Material: Tin-Plated Copper
L1: 32mm (1.26")
D: 14.3mm (0.56")
D1: 13.5mm (0.53")
D2 16.3mm (0.64")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 265A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:




Cross References

Cross Reference Parts:
ABB: XUSG02012
American Electrical: 1232170
Burndy: YF2/032UI
Panduit: F89-32-L
Thomas Betts: F9041
Weidmuller: 9004240000
ZF: XUSG02012
