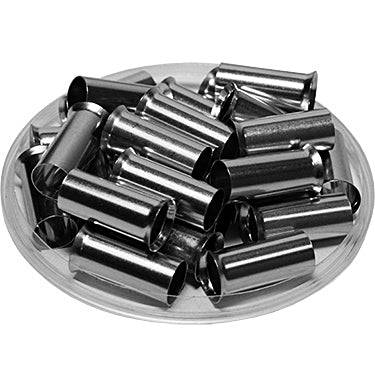

N80015 - True 8 AWG (15mm Pin) Non Insulated Ferrules
Original price
$11.16
-
Original price
$11.16
Original price
$11.16
$11.16
-
$11.16
Current price
$11.16
SKU N80015
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Technical Drawing:
None
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Range: | True 8 AWG (8.37mm²) |
| Material: | Tin-Plated Copper |
| L1: | 15.0mm (0.591") |
| D: | 4.2mm (0.165") |
| D1: | 3.8mm (0.150") |
| D2 | 5.0mm (0.196") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 70A |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
