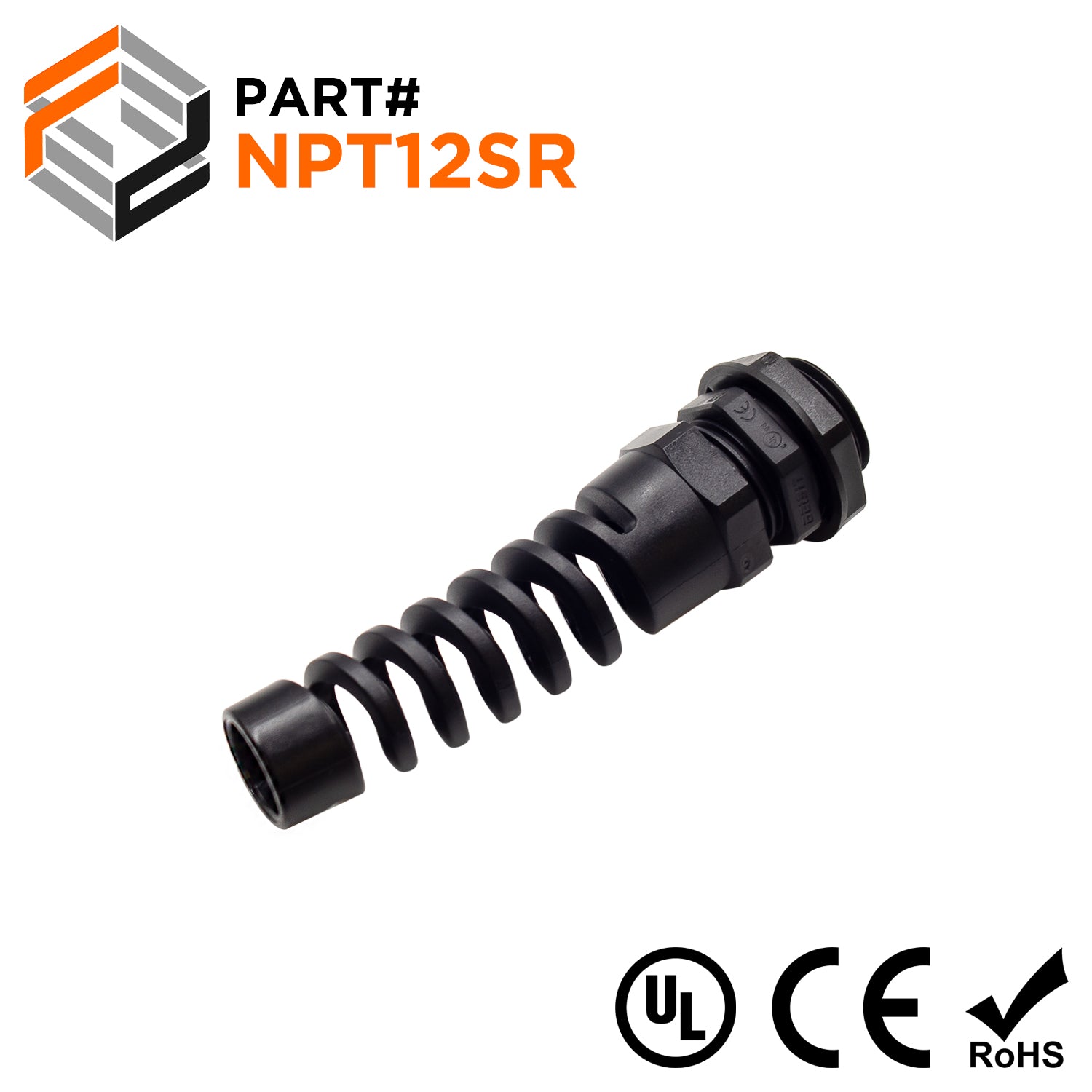

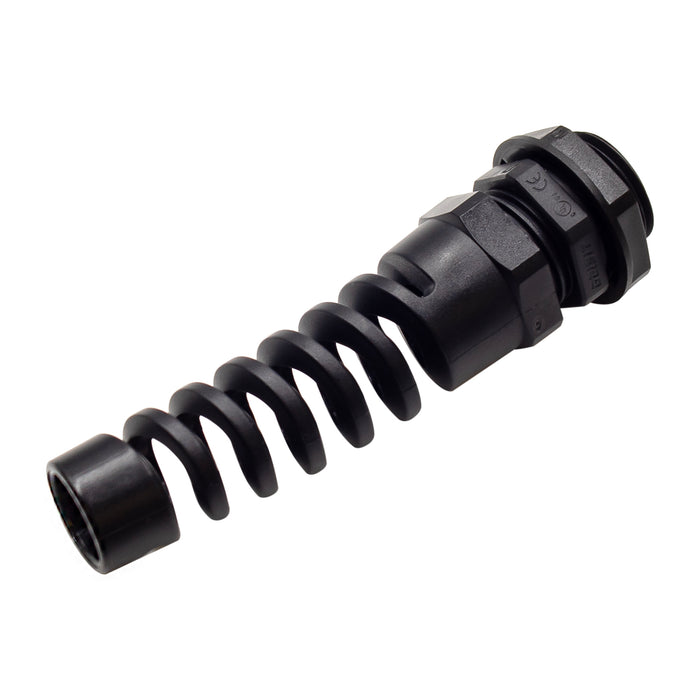

NPT12SR - NPT Cable Gland with Strain Relief - 1/2"
Original price
$3.72
-
Original price
$3.72
Original price
$3.72
$3.72
-
$3.72
Current price
$3.72
SKU NPT12SR
Availability:
in stock, ready to be shipped
Ferrules Direct's Cable Glands with strain relief offer excellent strain relief for cables and provide IP68 protection against dust and water. Ferrules Direct offers a good selection of NPT thread choices. Additional cable glands with strain relief are available upon request. (Includes o-ring but locknut is sold separately. See bundle below for complete accessories)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | NPT 1/2" |
| Cable Range: | 6-12mm |
| Color: | Black |
| D1: | 20.8mm (0.82") |
| D2: | 13.2mm (0.52") |
| B1: | 12.1mm (0.48") |
| L1: | 12.9mm (0.51") |
| L2: | 18mm (0.71") |
| L3: | 76mm (2.99") |
| Material: | UL Approved 94UV-2 |
| Flammability: | PA (Nylon), UL 94 |
| Protection Rating: | IP68 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
