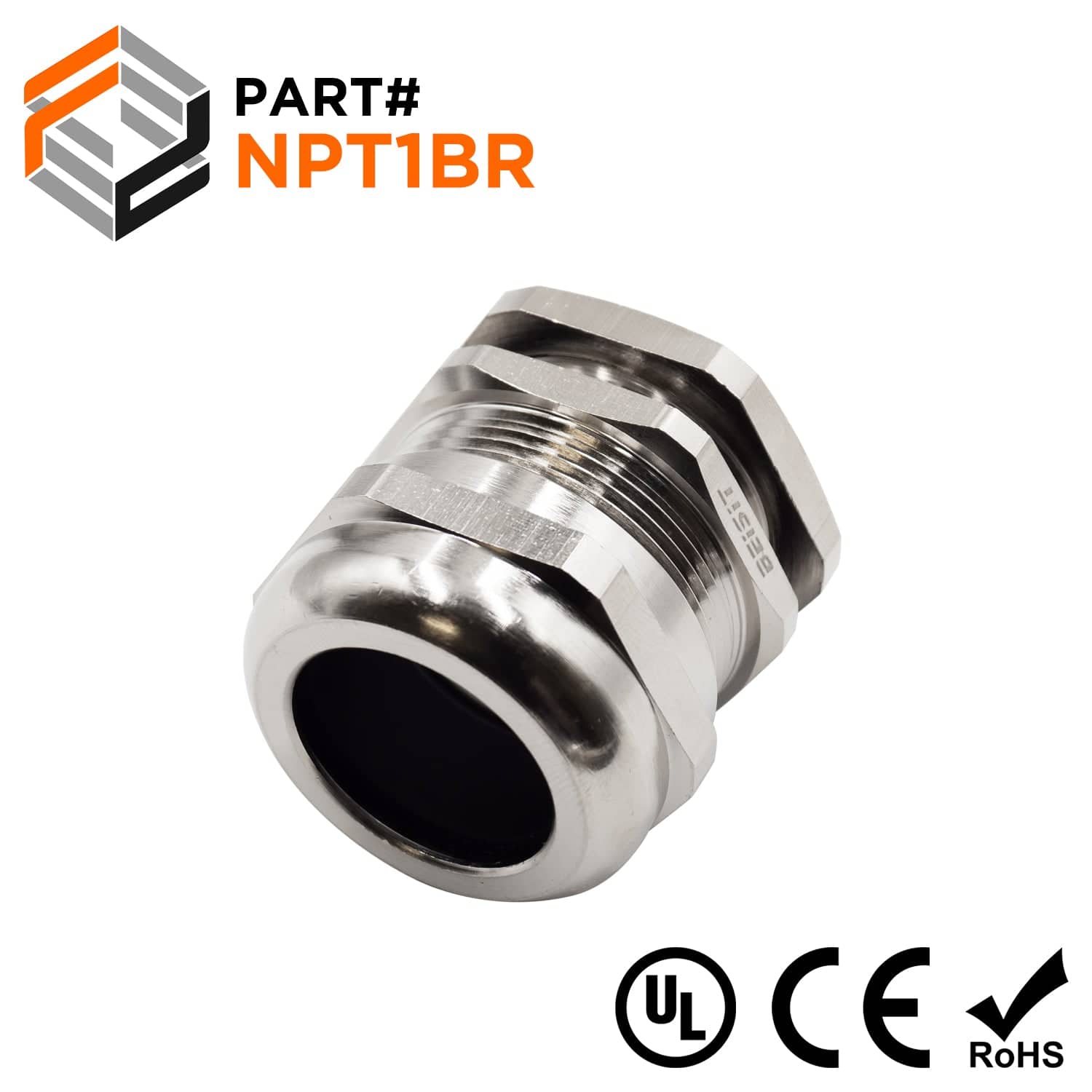

NPT 1" Brass Cable Gland - 18-25mm - NPT1BR
Sold out
$14.96
SKU NPT1BR
1" NPT Thread Metal Cable Gland (Includes o-ring but locknut is sold separately. See bundle below for complete accessories)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | NPT 1" |
| Cable Range: | 18-25mm |
| C1: | 32.8mm (1.29") |
| C2: | 25.5mm (1.00") |
| D2: | 25.5mm (1.00") |
| B1: | 25.5mm (1.00") |
| L1: | 16mm (0.63") |
| L2: | 22.9mm (0.90") |
| L3: | 18.9mm (0.74") |
| Material: | Nickel-Plated Brass |
| Ingress Protection: | IP68 |
| Flammability: | PA (Nylon), UL 94 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
