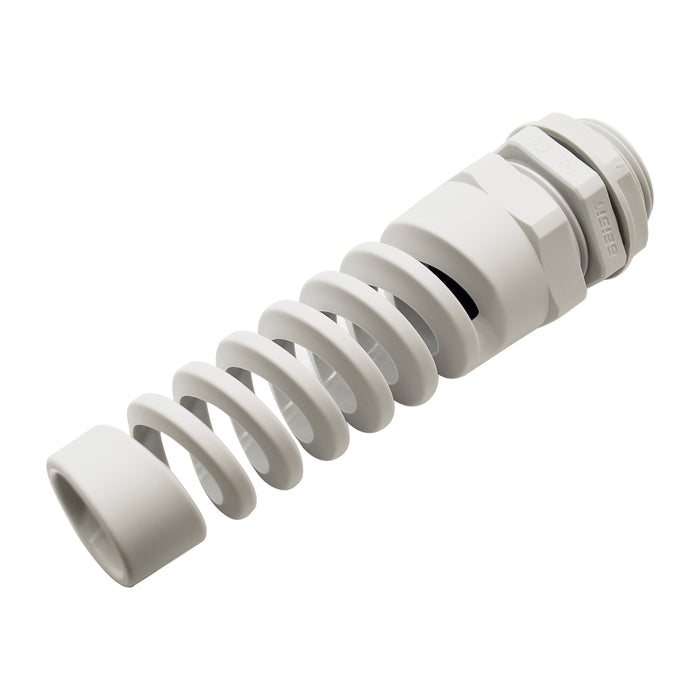

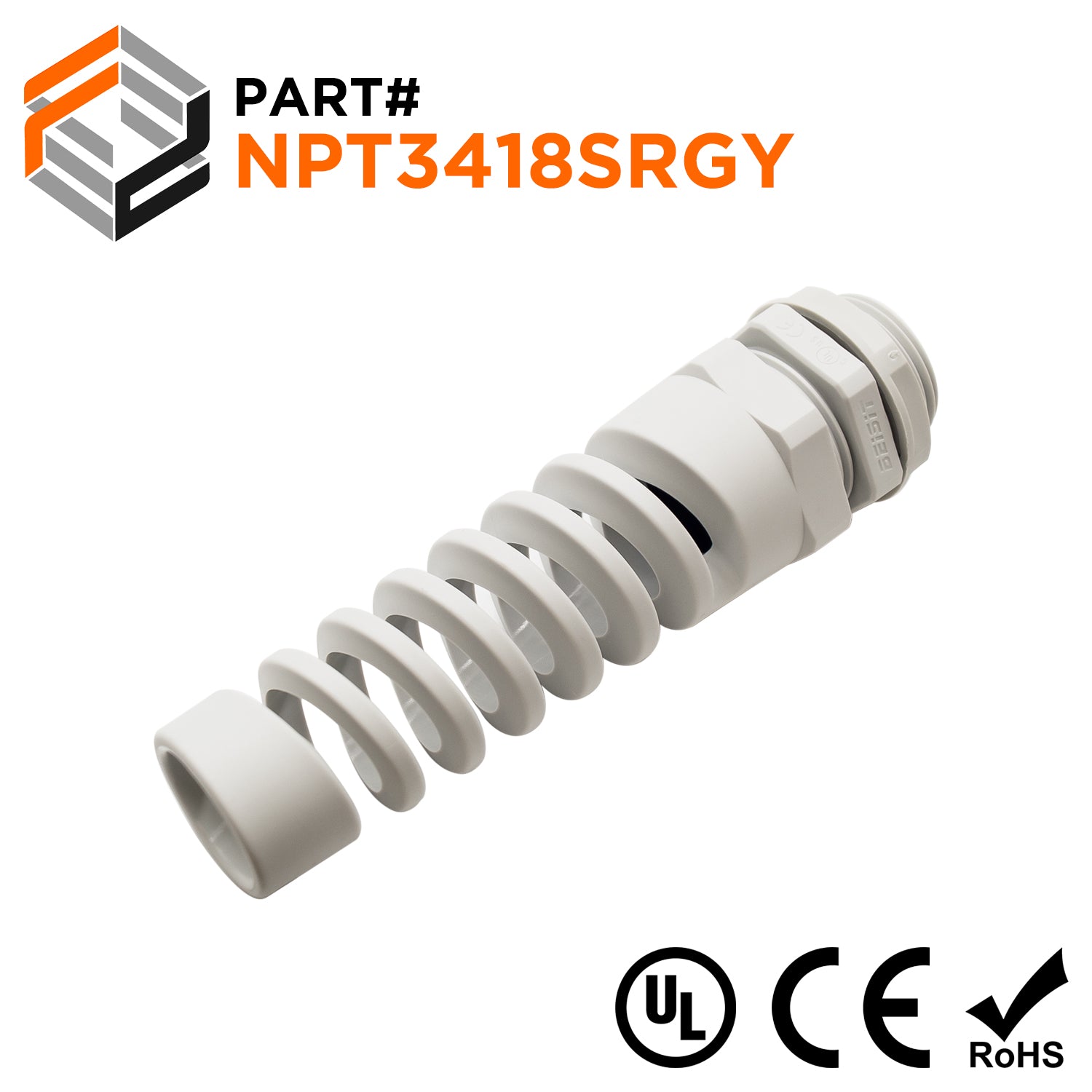

3/4" NPT Thread Nylon Flexible Cable Gland, Gray, Range: 1/2" to 11/16", UL Recognized, IP68 - NPT3418SRGY
Original price
$7.88
-
Original price
$7.88
Original price
$7.88
$7.88
-
$7.88
Current price
$7.88
SKU NPT3418SRGY
Availability:
in stock, ready to be shipped
FLEXIBLE NYLON CABLE GLANDS: NPT THREAD (STRAIN RELIEF)
NPT (National Pipe Thread) cable glands are useful when creating water-tight pass-throughs for cables. They protect and secure cables through their internal seals. Ferrules Direct offers a wide range of NPT sizes in a variety of materials and colors. These glands are easy to use and built to handle tough conditions.
- Lock Nut Included ✓
- Inner Gland Cable Seal Included ✓
- O-Ring Included ✓
- UL Recognized ✓
- IP68 Rating ✓
Formerly sold as part #: NPT34SRGY.
DIMENSIONS & FEATURES:
Thread Size: | NPT 3/4" |
Cable Range: | 1/2" to 11/16" (13-18mm) |
Color: | Gray |
Material: | Nylon 6/6 (Polyamide) |
D1: | 26.3mm (1.03") |
D2: | 18.5mm (0.73") |
B1: | 18.4mm (0.72") |
L1: | 14.5mm (0.57") |
L2: | 29.2mm (1.15") |
L3: | 111.2mm (4.38") |
Flammability Rating: | UL 94V-2 |
Ingress Protection: | IP68 |
Hermetic Seal: | NBR (Nitrile Rubber) |
O-Ring: | EPDM |
Working Temperature: | -40°F to 221°F (-40°C to 105°C) |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
DRAWING:
DOCUMENT FILE:
