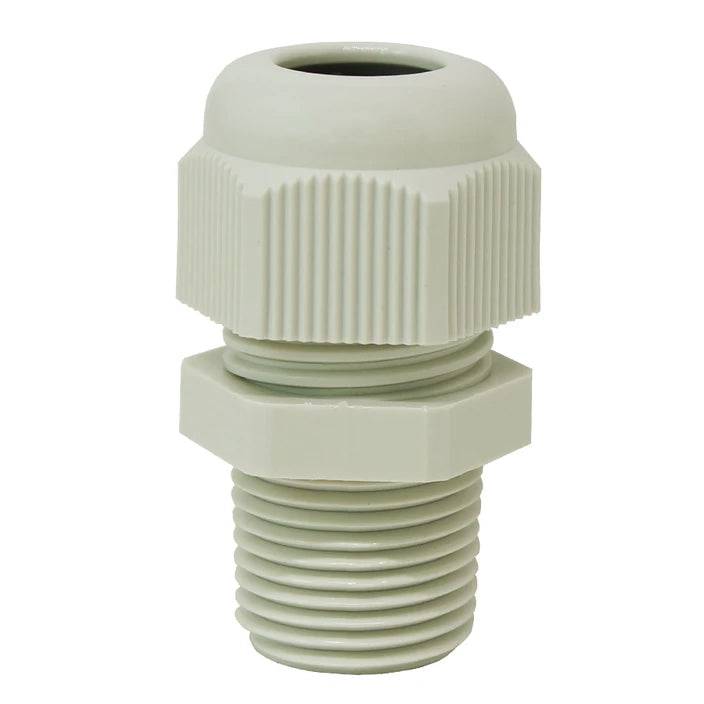

3/8" NPT Thread Nylon Cable Gland, Beige, Range: 3/16" to 5/16", UL Recognized, IP68 - NPT3808BG
Sold out
Original price
$0.75
-
Original price
$0.75
Original price
$0.75
$0.75
-
$0.75
Current price
$0.75
SKU NPT3808BG
Availability:
Out of stock
NYLON CABLE GLANDS: NPT THREAD
NPT (National Pipe Thread) cable glands are useful when creating water-tight pass-throughs for cables. They protect and secure cables through their internal seals. Ferrules Direct offers a wide range of NPT sizes in a variety of materials and colors. These glands are easy to use and built to handle tough conditions.
- Lock-nut Included ✓
- Inner Gland Cable Seal Included ✓
- O-Ring Included ✓
- UL Recognized ✓
- IP68 Rating ✓
Formerly sold as part #: N3808BG.
DIMENSIONS & FEATURES:
Thread Size: | NPT 3/8" |
Cable Range: | 3/16" to 5/16" (4 - 8mm) |
Color: | Beige |
Material: | Nylon 6/6 (Polyamide) |
C1: | 16.6mm (0.65") |
C2: | 10.6mm (0.42") |
D2: | 8.4mm (0.33") |
B1: | 8.4mm (0.33") |
L1: | 14.5mm (0.31") |
L2: | 13.8mm (0.54") |
L3: | 13.2mm (0.52") |
Flammability: | UL 94V-2 |
Ingress Protection: | IP68 |
Hermetic Seal: | NBR (Nitrile Rubber) |
O-Ring: | EPDM |
Working Temperature: | -40°C to 105°C |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
