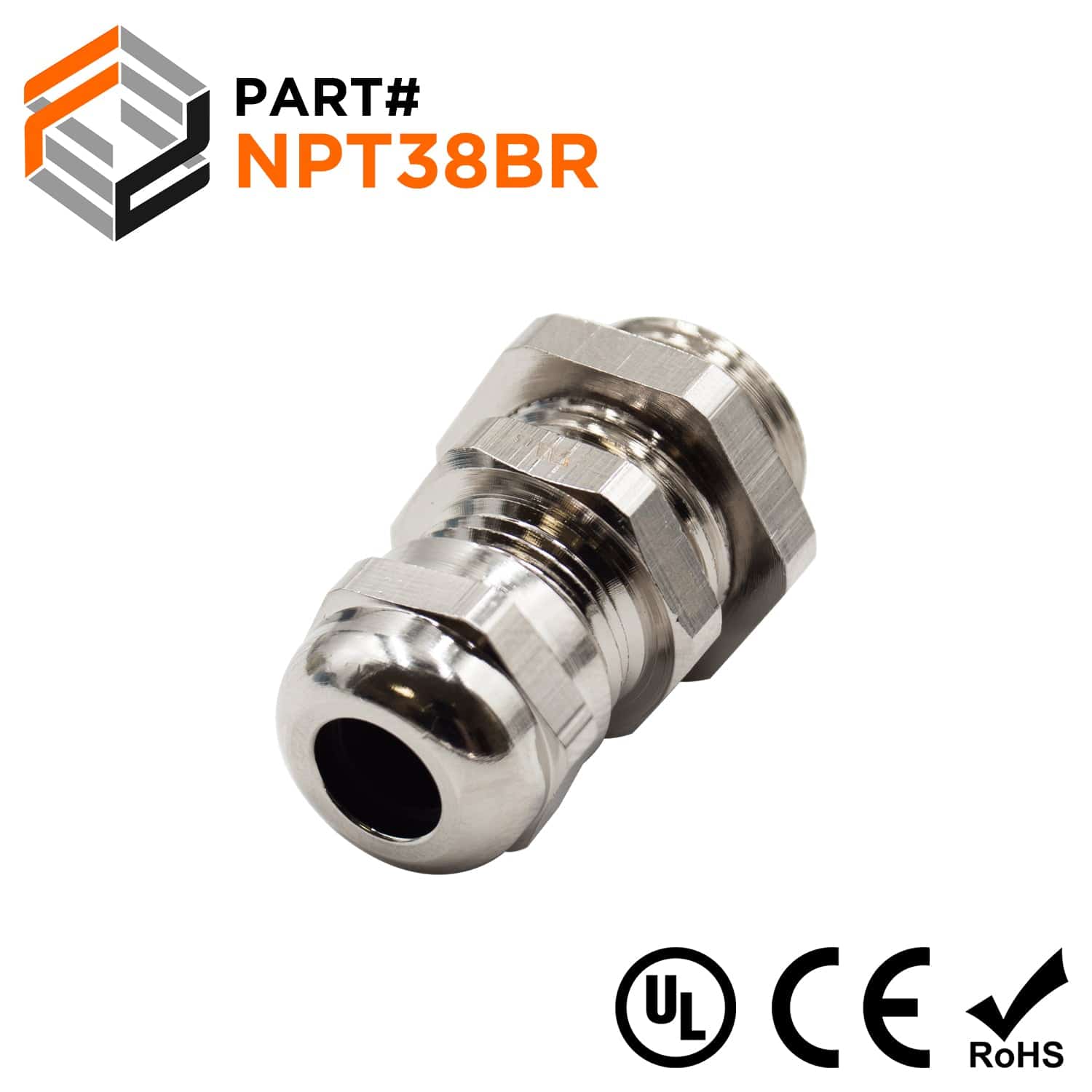

NPT 3/8" Brass Cable Gland - 4-8mm - NPT38BR
$4.90
SKU NPT38BR
3/8" NPT Thread Metal Cable Gland (Does not include o-ring or locknut)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | NPT 3/8" |
| Cable Range: | 4-8mm |
| C1: | 13.1mm (0.51") |
| C2: | 9.3mm (0.37") |
| D2: | 8.2mm (0.32") |
| B1: | 8.2mm (0.32") |
| L1: | 14.9mm (0.59") |
| L2: | 19.5mm (0.77") |
| L3: | 12.5mm (0.49") |
| Material: | Nickel-Plated Brass |
| Flammability: | PA (Nylon), UL 94 |
| Ingress Protection: | IP68 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
