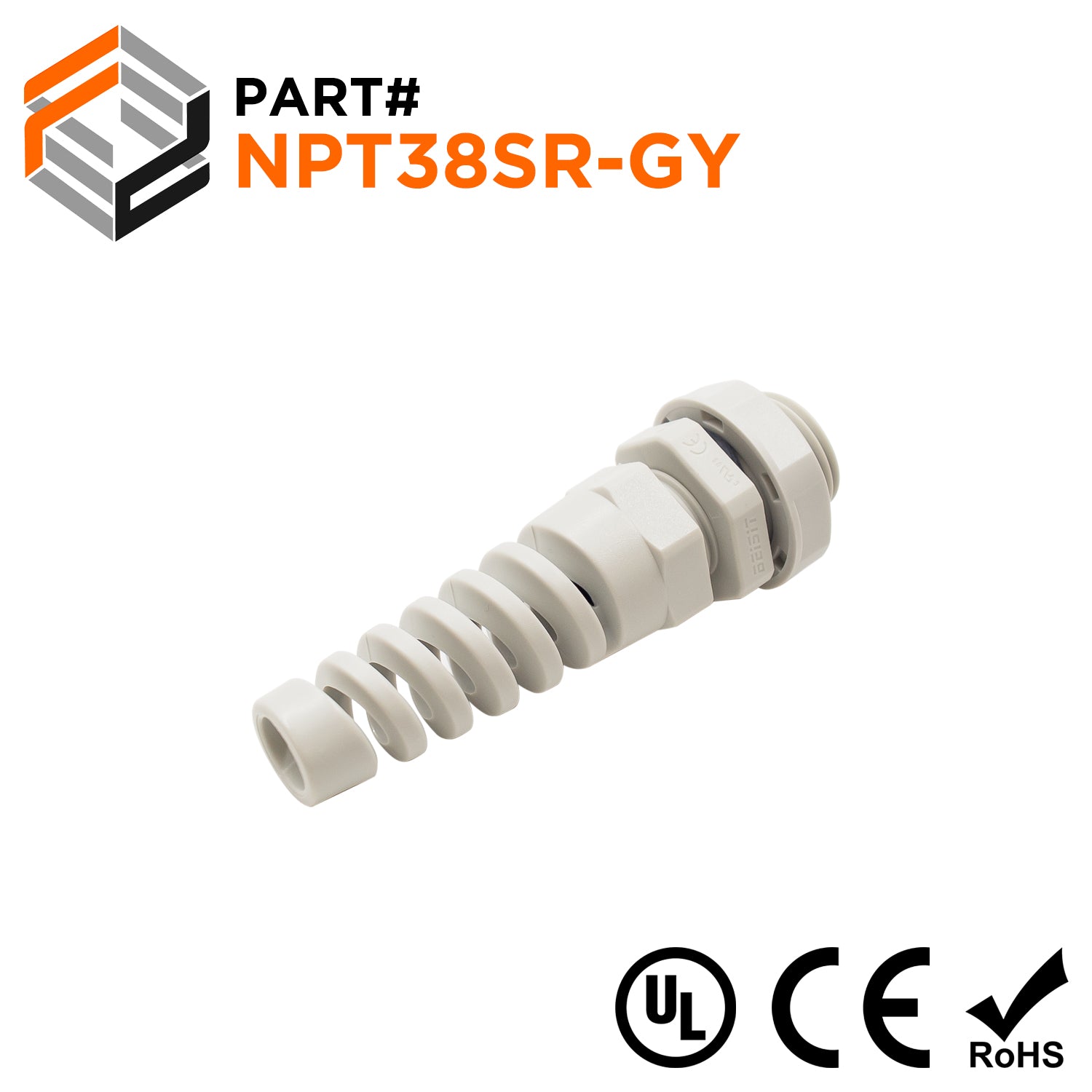

3/8" Gray NPT Nylon Cable Gland & Nut, Strain Relief, IP68, 5-10mm Range, NPT38SR-GY
Original price
$1.52
-
Original price
$1.52
Original price
$1.52
$1.52
-
$1.52
Current price
$1.52
SKU NPT38SR-GY
Availability:
in stock, ready to be shipped
Ferrules Direct's Cable Glands with strain relief offer excellent strain relief for cables and provide IP68 protection against dust and water. Ferrules Direct offers a good selection of NPT thread choices. Additional cable glands with strain relief are available upon request. Locknut included.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
Thread Size: | NPT 3/8" |
Cable Range: | 5-10mm |
Color: | Gray |
D1: | 16.7mm (0.66") |
D2: | 10.8mm (0.43") |
B1: | 10.5mm (0.41") |
L1: | 14.6mm (0.57") |
L2: | 23.8mm (0.94") |
L3: | 74.9mm (2.95") |
Material: | UL Approved 94UV-2 |
Flammability: | PA (Nylon), UL 94 |
Protection Rating: | IP68 |
Hermetic Seal: | NBR (Nitrile Rubber) |
O-Ring: | EPDM |
Working Temperature: | -40°C to 105°C |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/NPTSR_Drawing_New_d633dfa8-865e-4af6-9059-d02fc27a5782_600x600.jpg?v=1595529769)
Cross References
Cross Reference Parts:None
