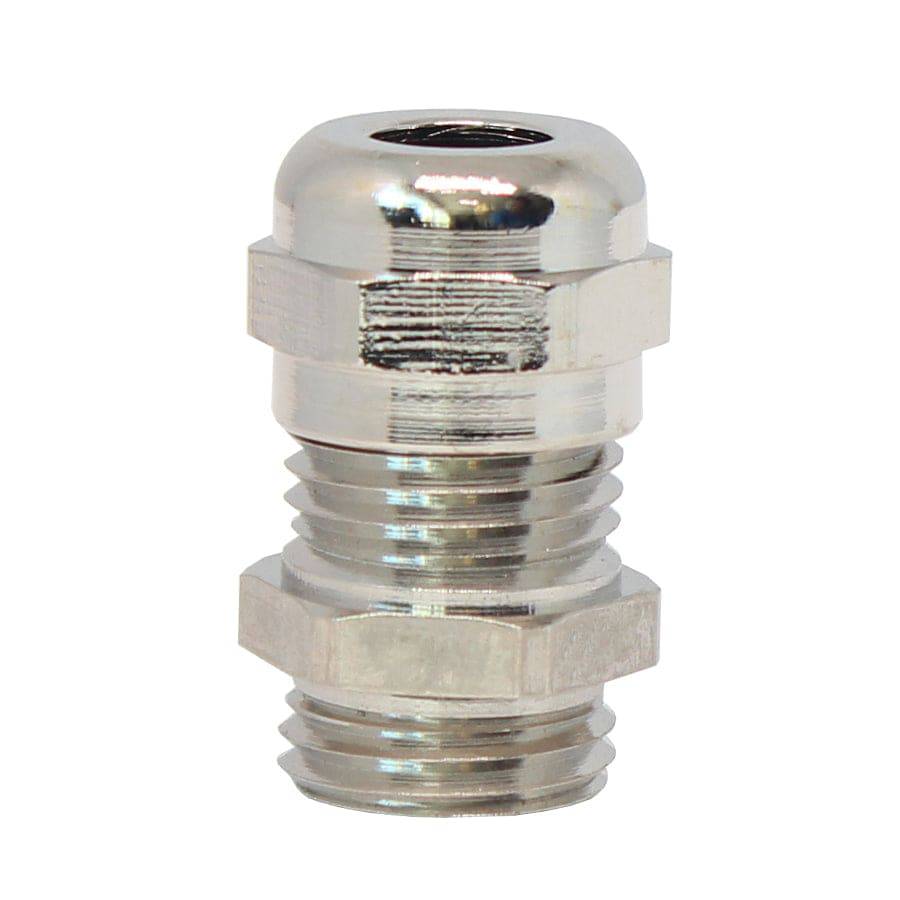

PG7 Brass Cable Gland - 3-6.5mm - PG0707BR

$3.28
SKU PG0707BR
Piece Quantity
PG Thread Metal Cable Gland (Includes o-ring but locknut is sold separately. See bundle below for complete accessories)

Dimensions & Features:

Thread Size: PG7
Cable Range: 3-6.5mm
C1: 12.5mm (0.49")
C2: 6.7mm (0.26")
D2: 6.7mm (0.26")
B1: 6.7mm (0.26")
L1: 5.0mm (0.20")
L2: 17.7mm (0.70")
L3: 10.8mm (0.43")
Material: Nickel-Plated Brass
Flammability: PA (Nylon), UL 94
Ingress Protection: IP68
Hermetic Seal: NBR (Nitrile Rubber)
O-Ring: EPDM
Working Temperature: -40°C to 105°C
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
