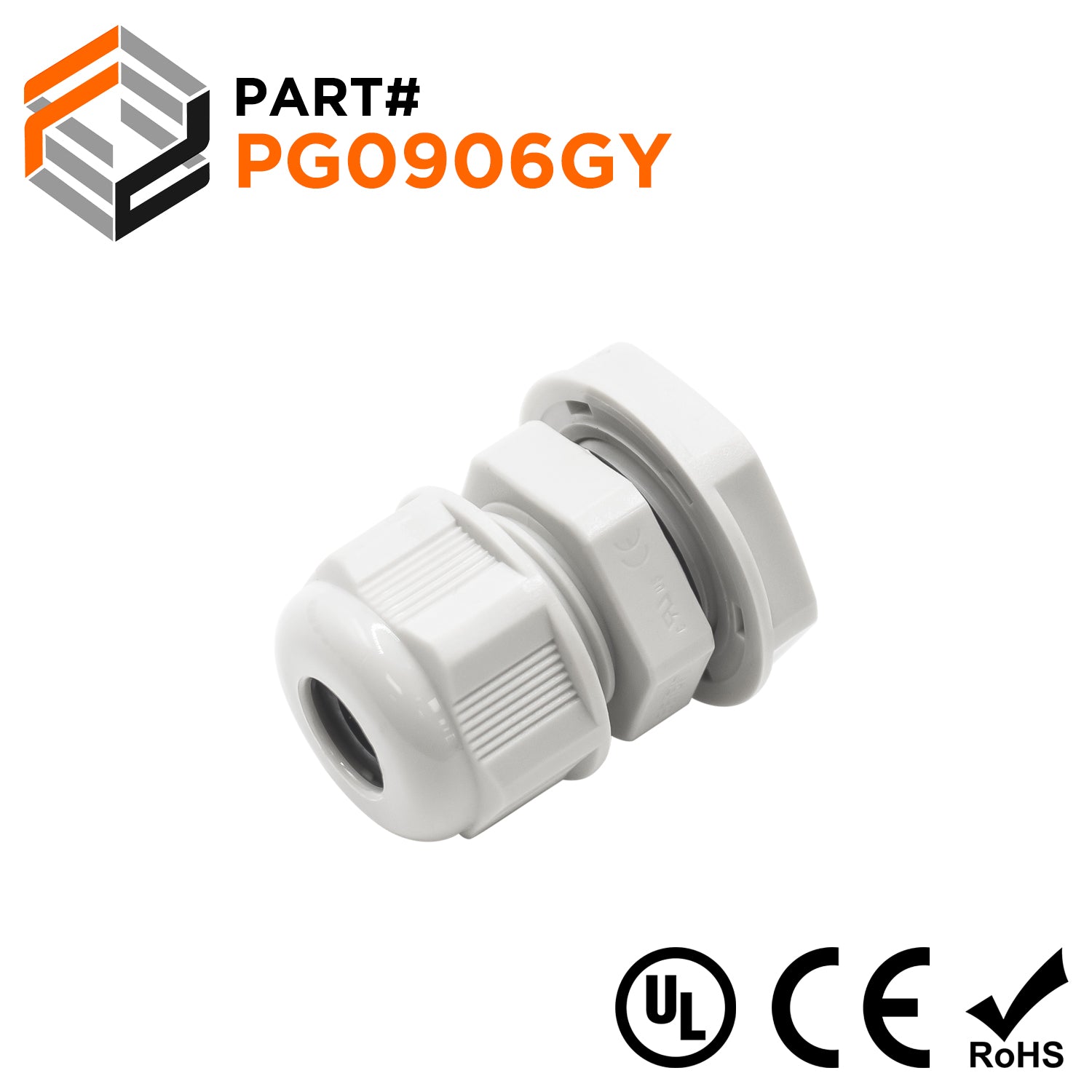

PG9 Nylon Cable Glands - 2-6mm - Gray - PG0906GY

$0.60
SKU PG0906GY
Piece Quantity
PG Thread Gray Cable Gland (Includes both o-ring and locknut)

Dimensions & Features:

Thread Size: PG9
Cable Range: 2-6mm
Color: Gray
C1: 15.2mm (0.60")
C2: 9.5mm (0.37")
D2: 6.1mm (0.26")
B1: 6.1mm (0.26")
L1: 8.0mm (0.31")
L2: 19mm (0.75")
L3: 12.9mm (0.51")
Material: UL Approved 94UV-2
Flammability: PA (Nylon), UL 94
Hermetic Seal: NBR (Nitrile Rubber)
O-Ring: EPDM
Working Temperature: -40°C to 105°C
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
