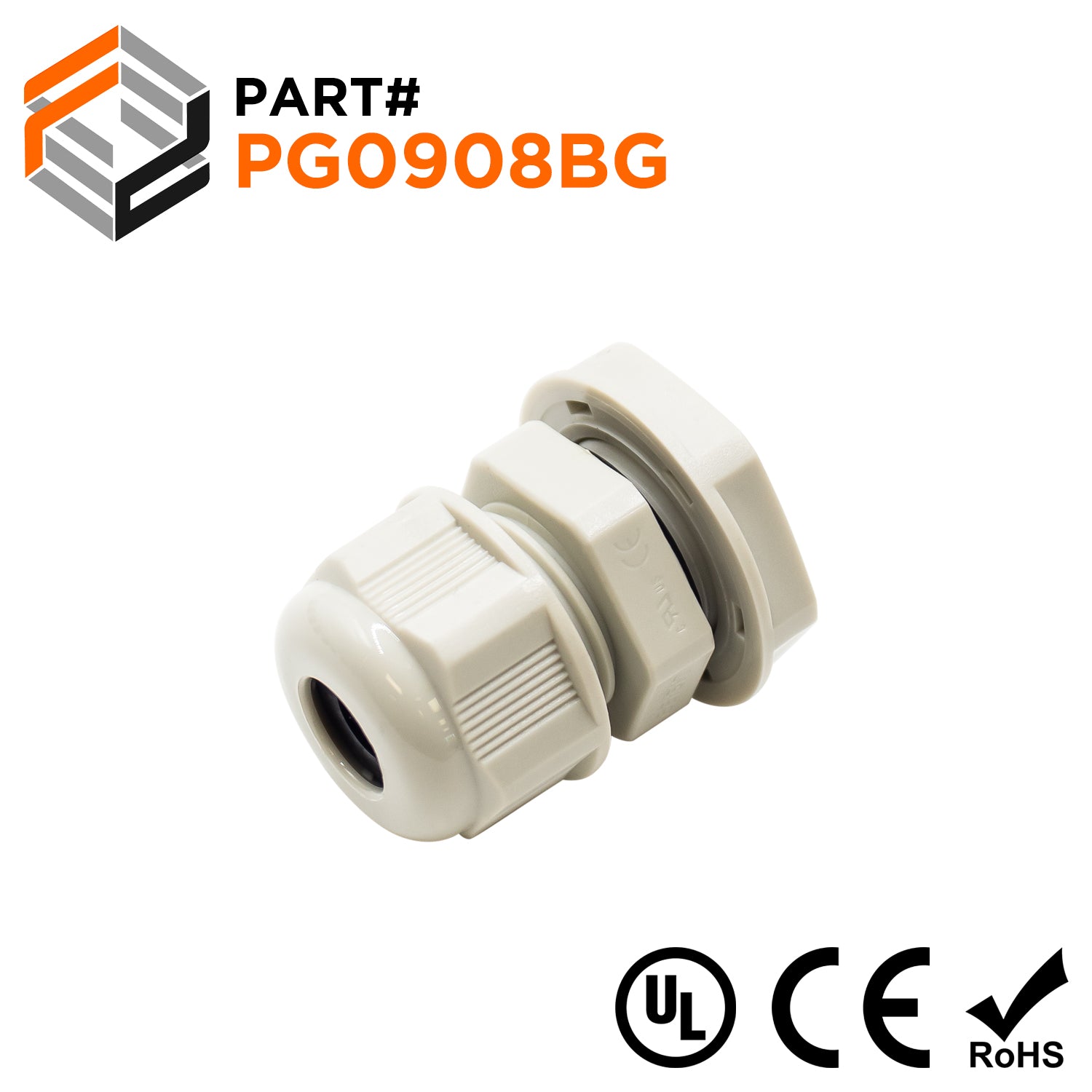

PG9 Nylon Cable Glands - 4-8mm - Beige - PG0908BG

$0.60
SKU PG0908BG
Piece Quantity

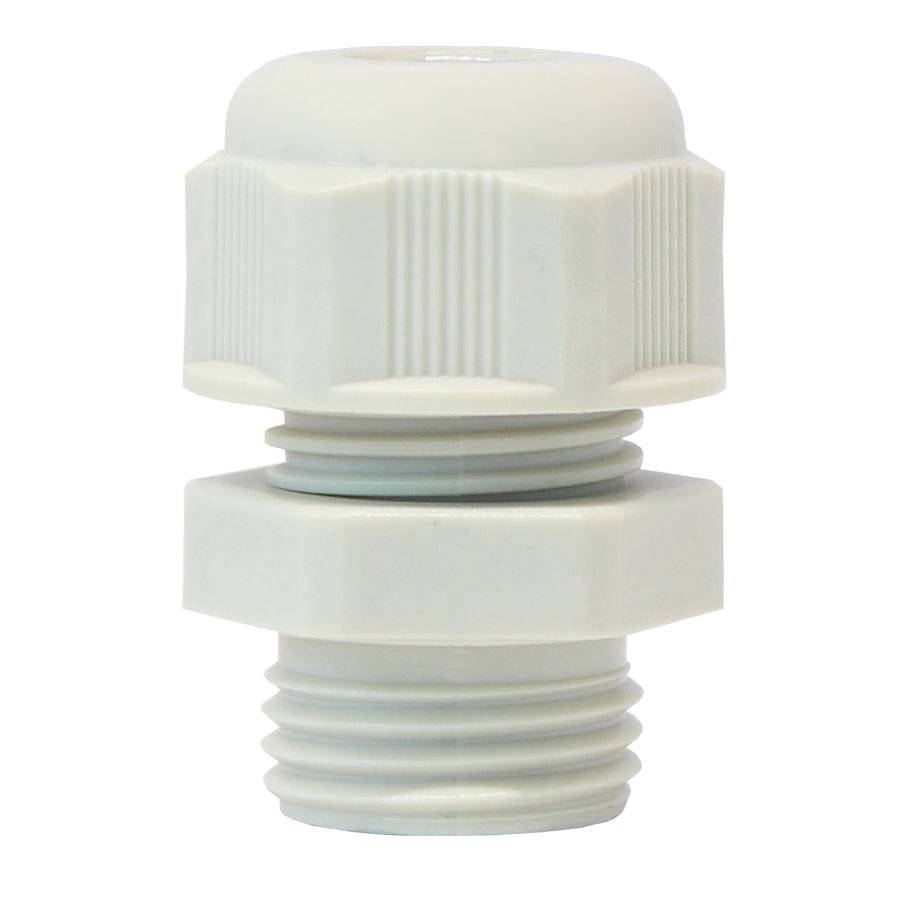

PG Thread Beige Cable Gland (Includes o-ring but locknut sold separately. See bundle below for complete accessories)

Dimensions & Features:

Thread Size: PG9
Cable Range: 4-8mm
Color: Beige
C1: 15.2mm (0.60")
C2: 9.5mm (0.37")
D2: 8.2mm (0.32")
B1: 8.2mm (0.32")
L1: 8.0mm (0.31")
L2: 19mm (0.75")
L3: 12.9mm (0.51")
Material: UL Approved 94UV-2
Flammability: PA (Nylon), UL 94
Hermetic Seal: NBR (Nitrile Rubber)
O-Ring: EPDM
Working Temperature: -40°C to 105°C
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
