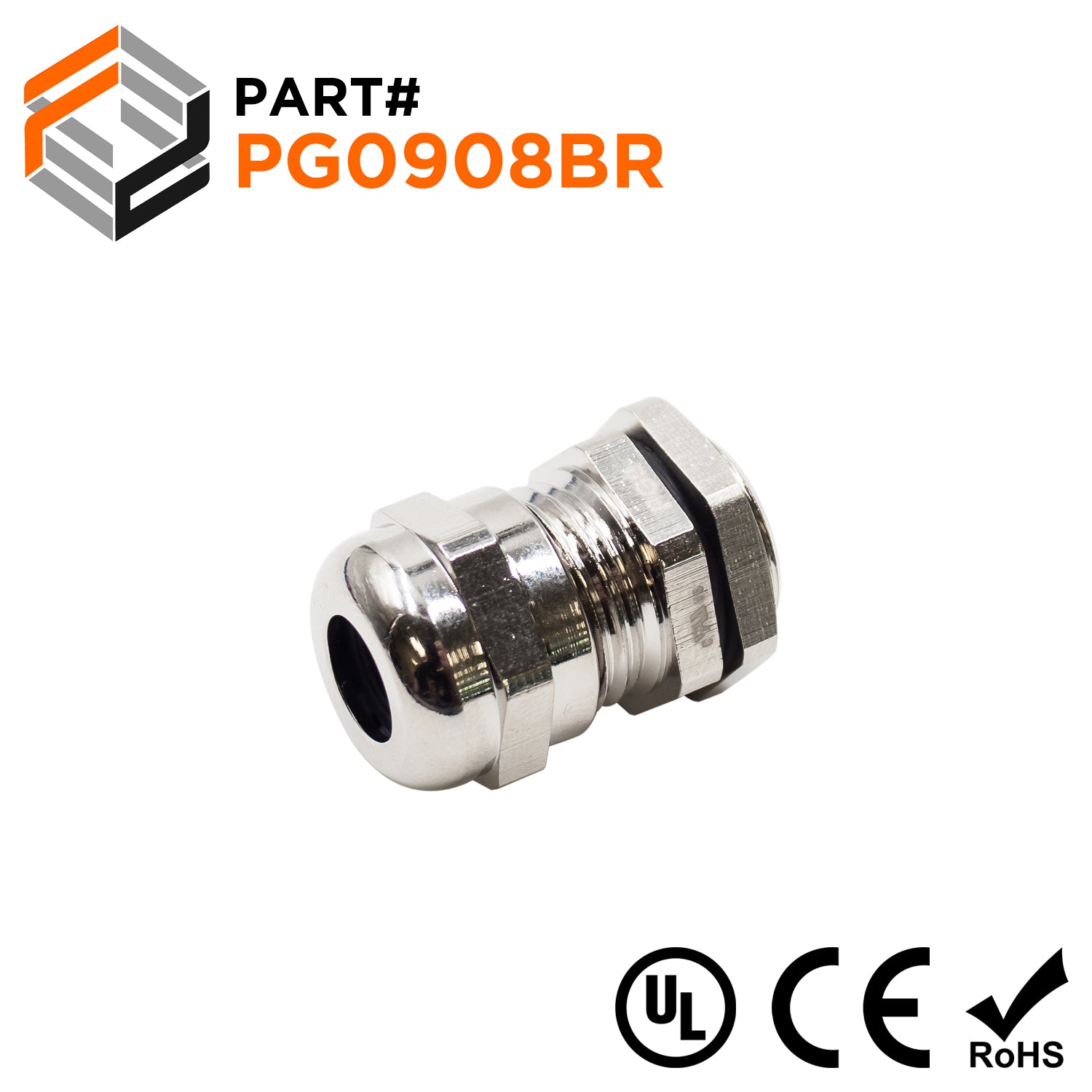

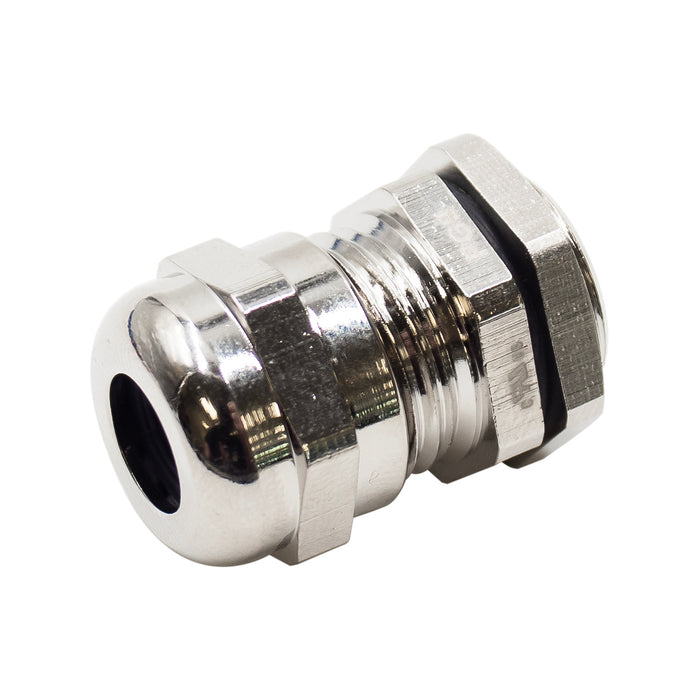

PG9 Brass Cable Gland - 4-8mm - PG0908BR
Original price
$3.80
-
Original price
$3.80
Original price
$3.80
$3.80
-
$3.80
Current price
$3.80
SKU PG0908BR
Availability:
in stock, ready to be shipped
PG Thread Metal Cable Gland (Includes o-ring but locknut is sold separately. See bundle below for complete accessories)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | PG9 |
| Cable Range: | 4-8mm |
| C1: | 15mm (0.59") |
| C2: | 8.3mm (0.33") |
| D2: | 8.3mm (0.33") |
| B1: | 8.3mm (0.33") |
| L1: | 6.1mm (0.24") |
| L2: | 18.6mm (0.73") |
| L3: | 12.6mm (0.50") |
| Material: | Nickel-Plated Brass |
| Flammability: | PA (Nylon), UL 94 |
| Protection: | IP68 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
