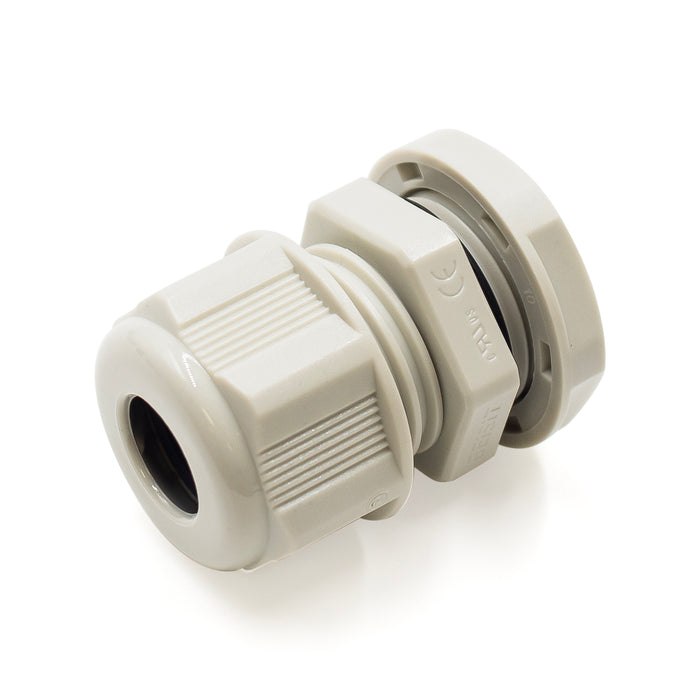

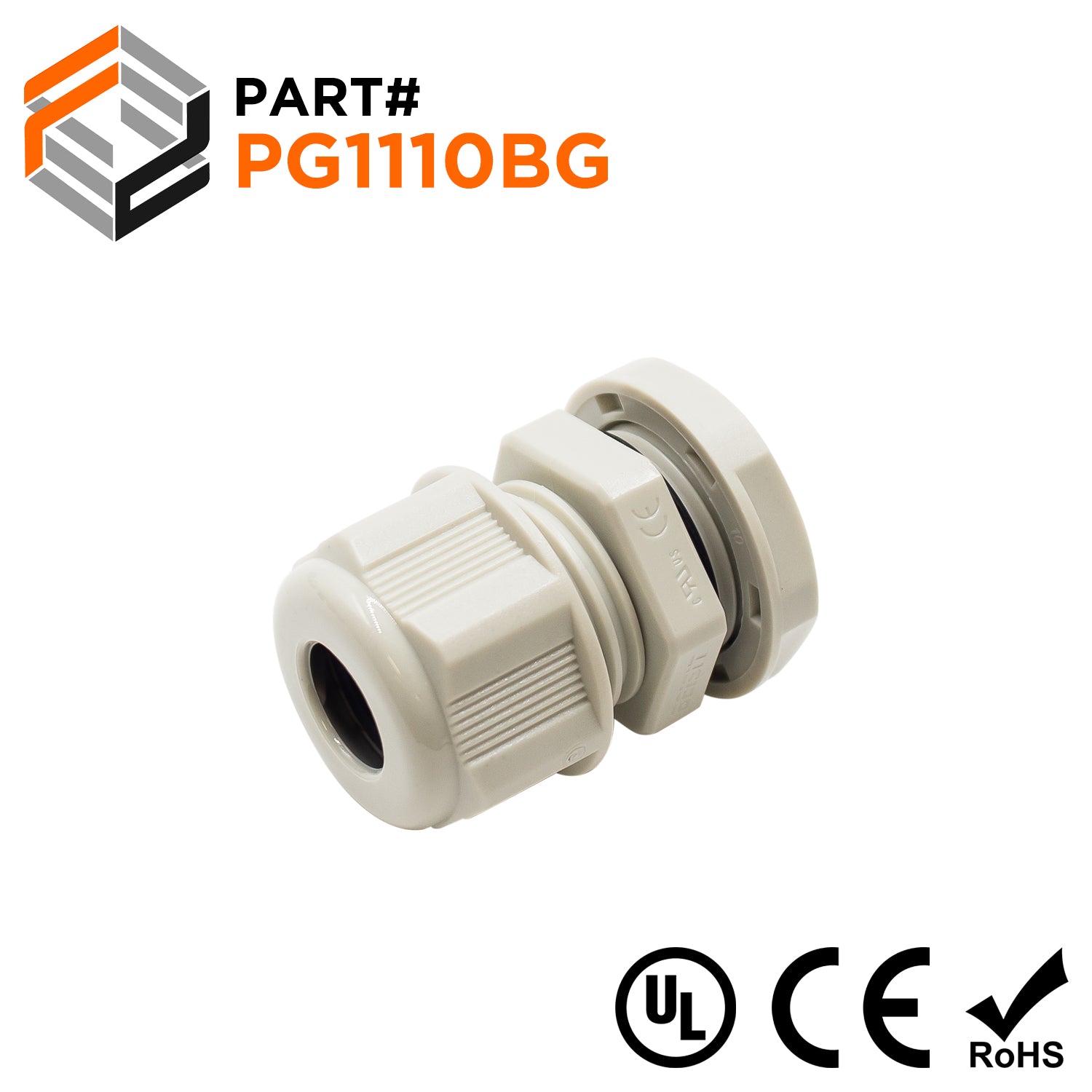

PG11 Nylon Cable Glands - 5-10mm - Beige- PG1110BG

$0.70
SKU PG1110BG
Piece Quantity
PG Thread Beige Cable Gland (Does not include o-ring or locknut)


Dimensions & Features:

Thread Size: PG11
Cable Range: 5-10mm
Color: Beige
C1: 18.6mm (0.73")
C2: 11.3mm (0.44")
D2: 10.5mm (0.41")
B1: 10.5mm (0.41")
L1: 8.0mm (0.31")
L2: 21.8mm (0.86")
L3: 15mm (0.60")
Material: UL Approved 94UV-2
Ingress Protection: IP68
Flammability: PA (Nylon), UL 94
Hermetic Seal: NBR (Nitrile Rubber)
O-Ring: EPDM
Working Temperature: -40°C to 105°C
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
