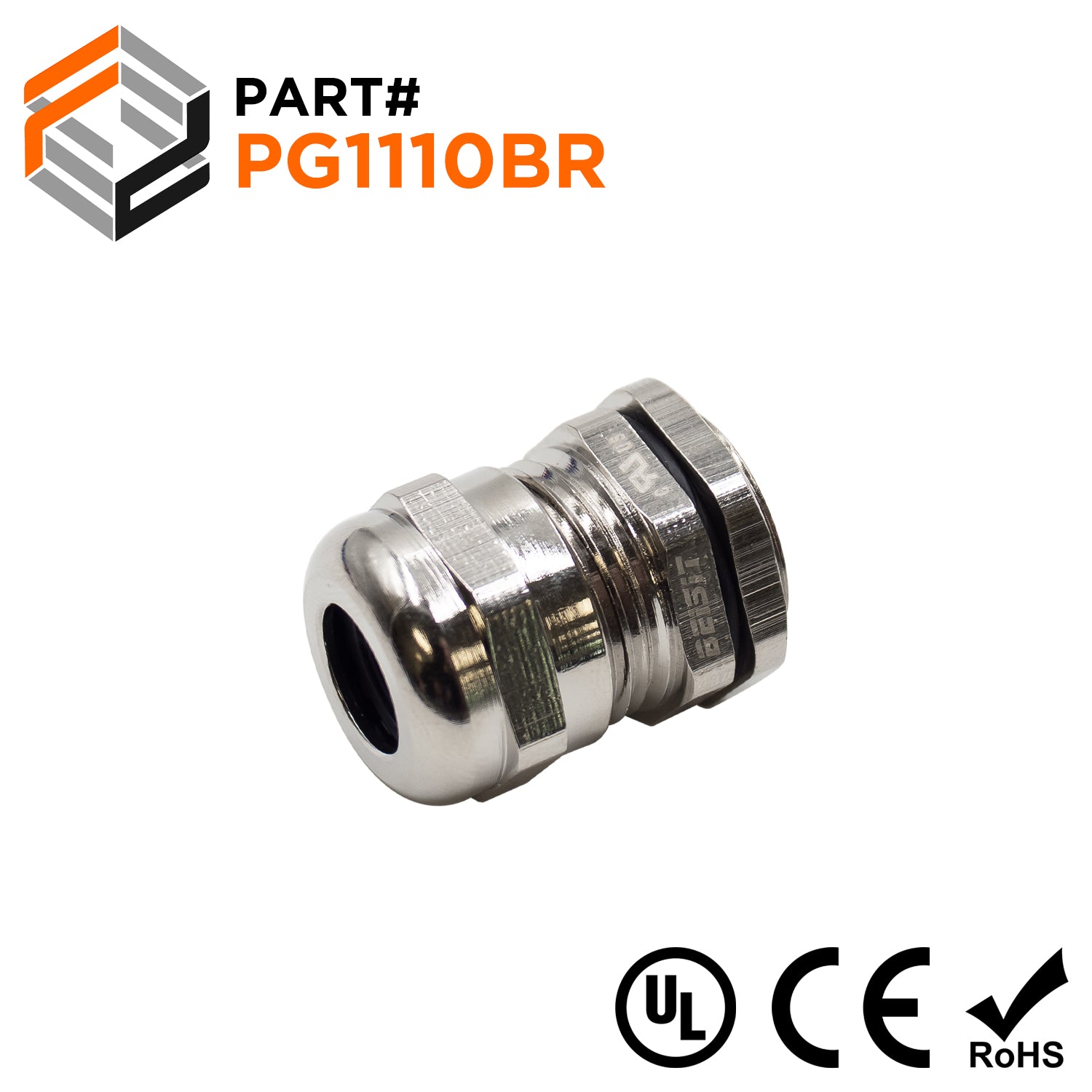

PG11 Brass Cable Gland - 5-10mm - PG1110BR
Sold out
Original price
$4.08
-
Original price
$4.08
Original price
$4.08
$4.08
-
$4.08
Current price
$4.08
SKU PG1110BR
Availability:
Out of stock
PG Thread Metal Cable Gland (Includes o-ring but locknut is sold separately. See bundle below for complete accessories)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | PG11 |
| Cable Range: | 5-10mm |
| C1: | 18.4mm (0.72") |
| C2: | 10.6mm (0.42") |
| D2: | 10.6mm (0.42") |
| B1: | 10.6mm (0.42") |
| L1: | 5.6mm (0.22") |
| L2: | 19.9mm (0.78") |
| L3: | 13.5mm (0.53") |
| Material: | Nickel-Plated Brass |
| Flammability: | PA (Nylon), UL 94 |
| Ingress Protection: | IP68 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
