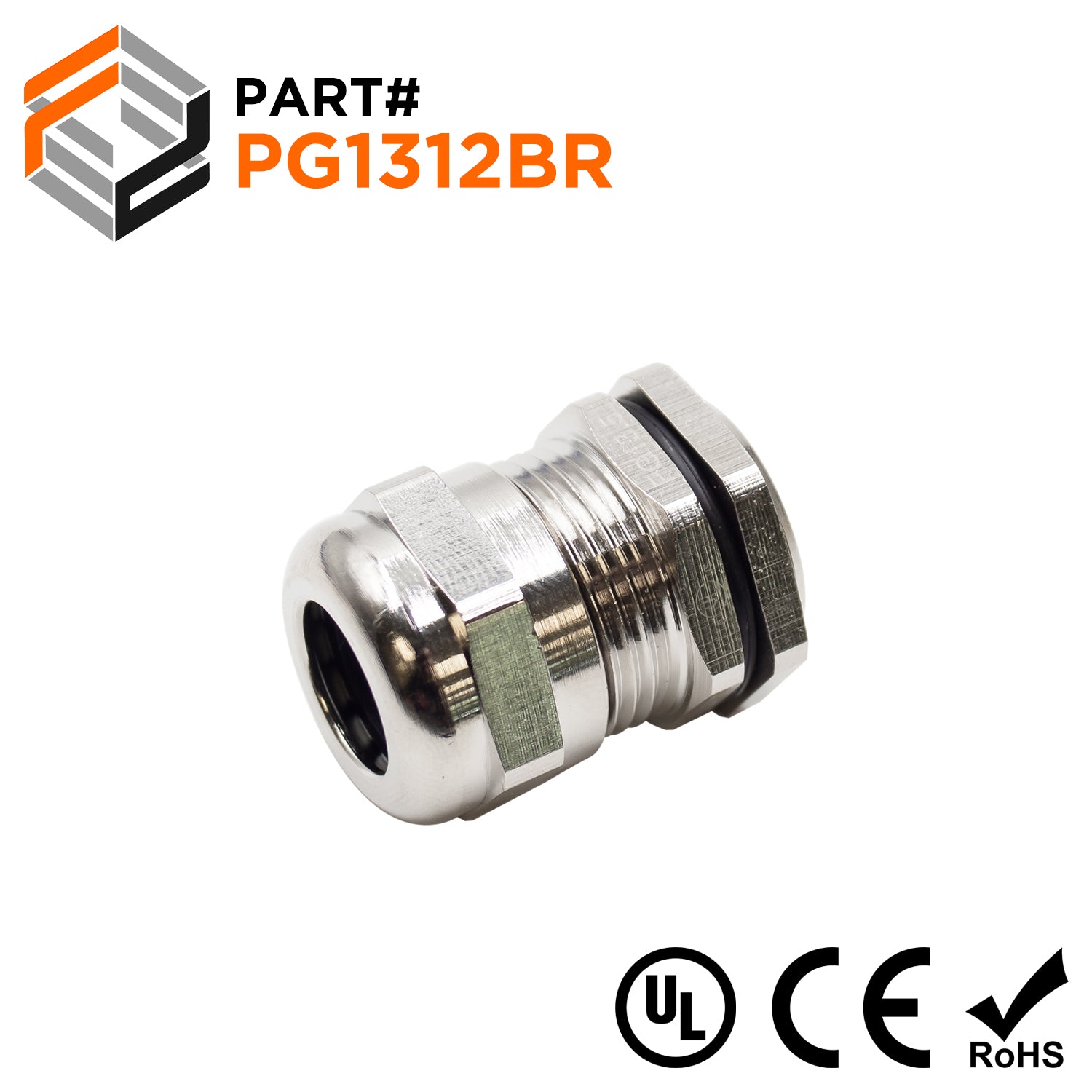

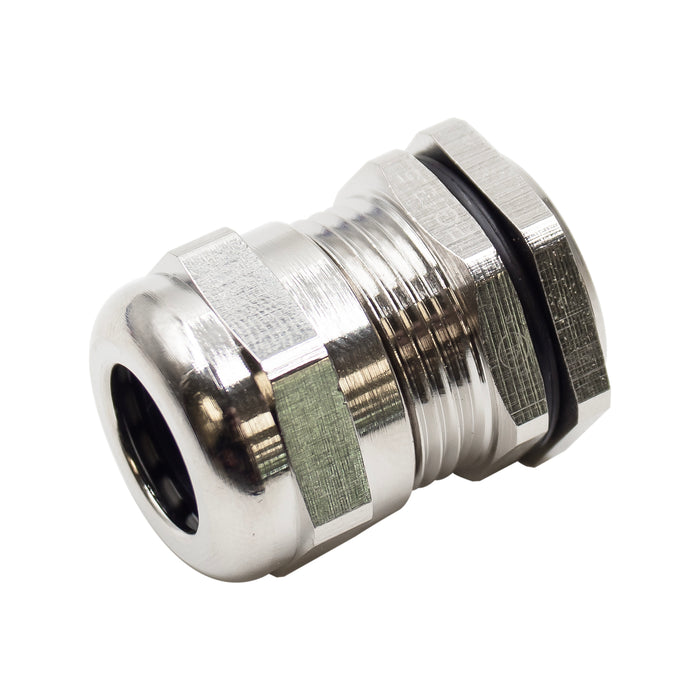

PG13.5 Brass Cable Gland - 6-12mm - PG1312BR
$4.74
SKU PG1312BR

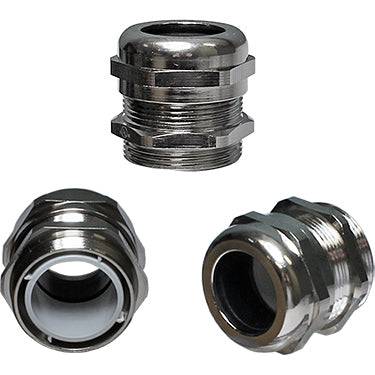

PG Thread Metal Cable Gland (Includes o-ring but locknut is sold separately. See bundle below for complete accessories)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | PG13.5 |
| Cable Range: | 6-12mm |
| C1: | 20.3mm (0.80") |
| C2: | 12.2mm (0.48") |
| D2: | 12.2mm (0.48") |
| B1: | 12.2mm (0.48") |
| L1: | 6.2mm (0.24") |
| L2: | 18.2mm (0.72") |
| L3: | 14.5mm (0.57") |
| Material: | Nickel-Plated Brass |
| Ingress Protection: | IP68 |
| Flammability: | PA (Nylon), UL 94 |
| Protection: | IP68 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
