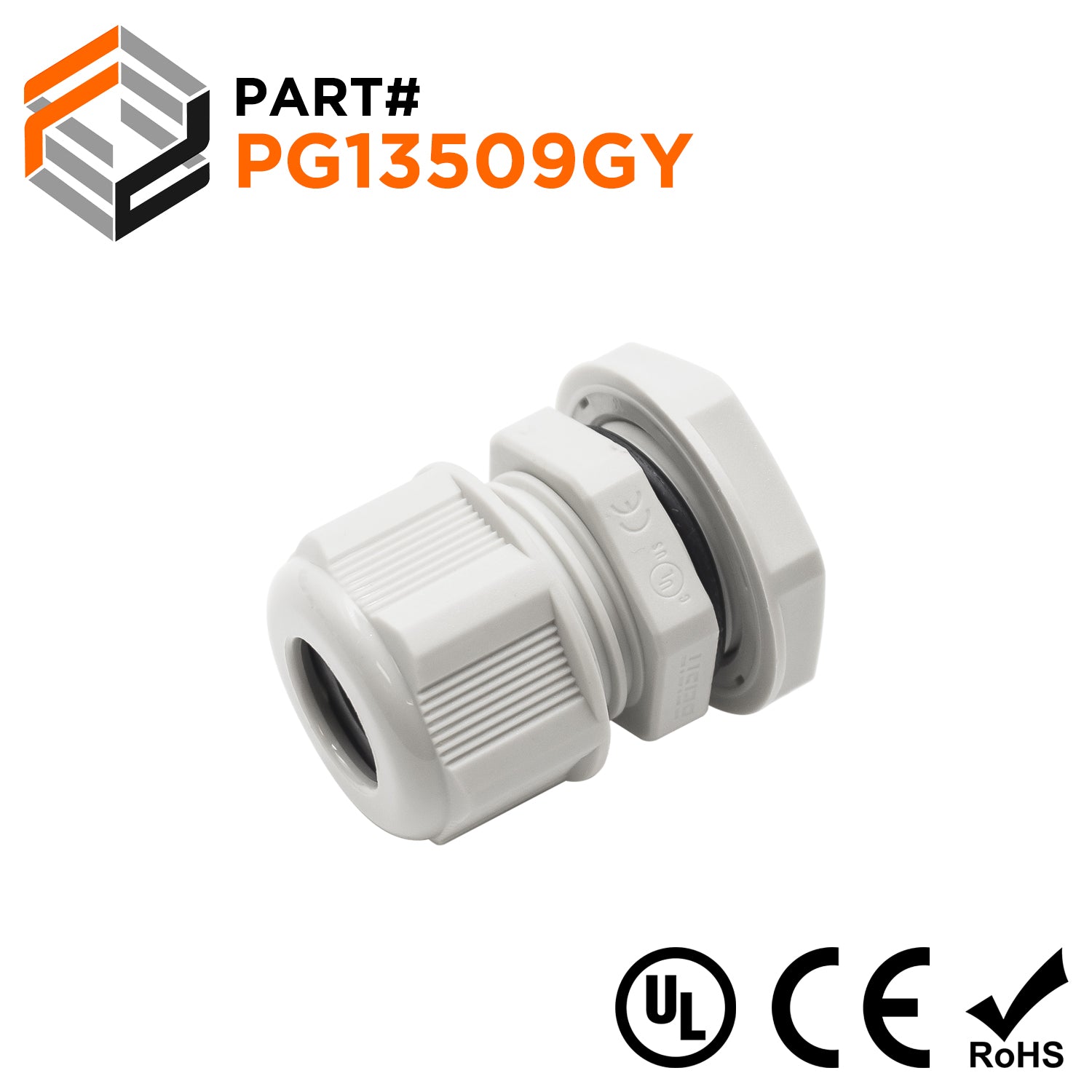

PG13.5 Nylon Cable Glands - 5-9mm - Gray - PG13509GY

$0.78
SKU PG13509GY
Piece Quantity
PG Thread Gray Cable Gland (Does not include o-ring or locknut)

Dimensions & Features:

Thread Size: PG13.5
Cable Range: 5-9mm
Color: Gray
C1: 20.4mm (0.80")
C2: 14.2mm (0.56")
D2: 9.1mm (0.36")
B1: 9.1mm (0.36")
L1: 9.0mm (0.35")
L2: 23mm (0.91")
L3: 15.8mm (0.62")
Material: UL Approved 94UV-2
Ingress Protection: IP68
Flammability: PA (Nylon), UL 94
Hermetic Seal: NBR (Nitrile Rubber)
O-Ring: EPDM
Working Temperature: -40°C to 105°C
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
