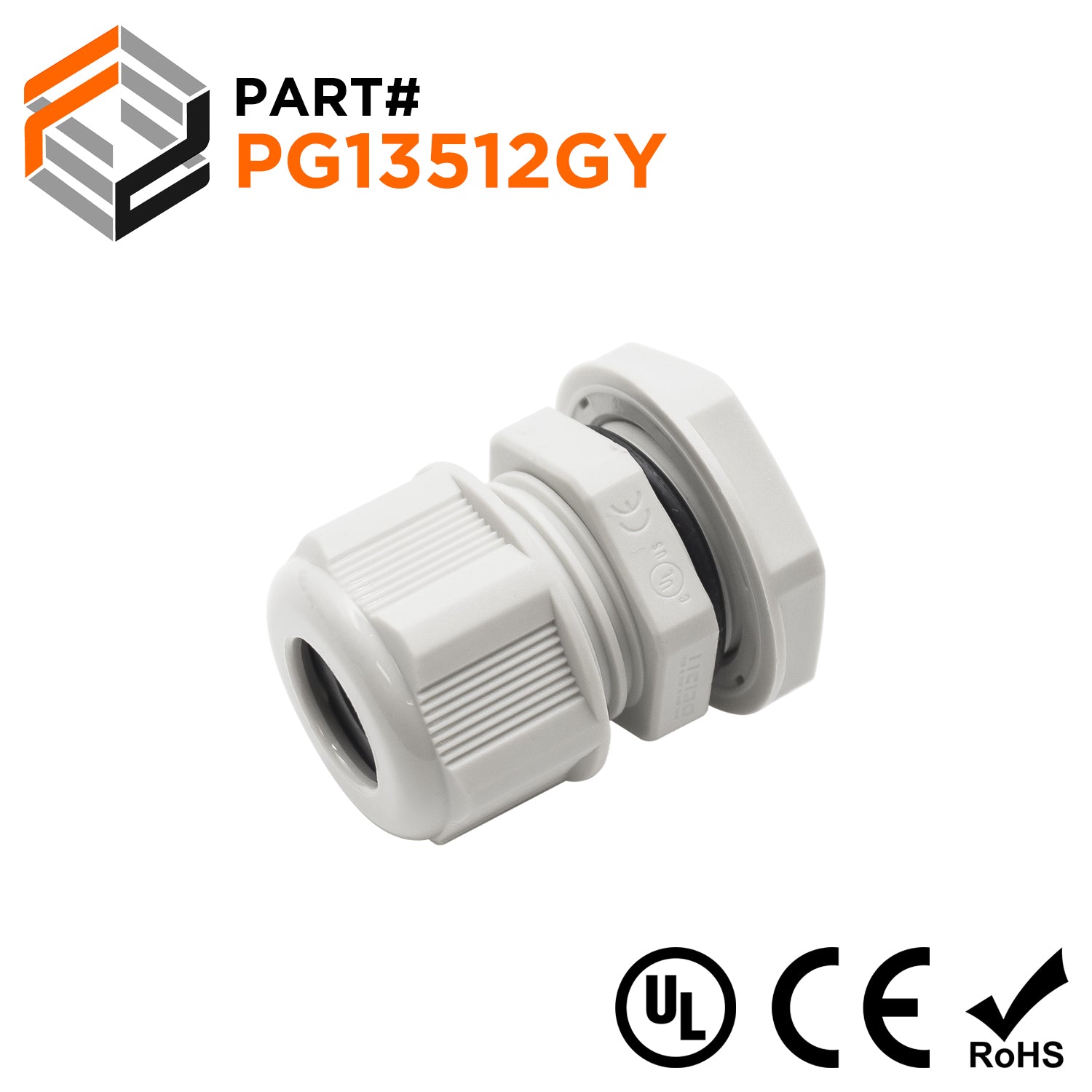

PG13.5 Nylon Cable Glands - 6-12mm - Gray - PG13512GY
$0.72
SKU PG13512GY
PG Thread Gray Cable Gland (Does not include o-ring or locknut)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | PG13.5 |
| Cable Range: | 6-12mm |
| Color: | Gray |
| C1: | 20.4mm (0.80") |
| C2: | 14.2mm (0.56") |
| D2: | 12.2mm (0.48") |
| B1: | 12.2mm (0.48") |
| L1: | 9.0mm (0.35") |
| L2: | 23mm (0.91") |
| L3: | 15.8mm (0.62") |
| Material: | UL Approved 94UV-2 |
| Ingress Protection: | IP68 |
| Flammability: | PA (Nylon), UL 94 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
