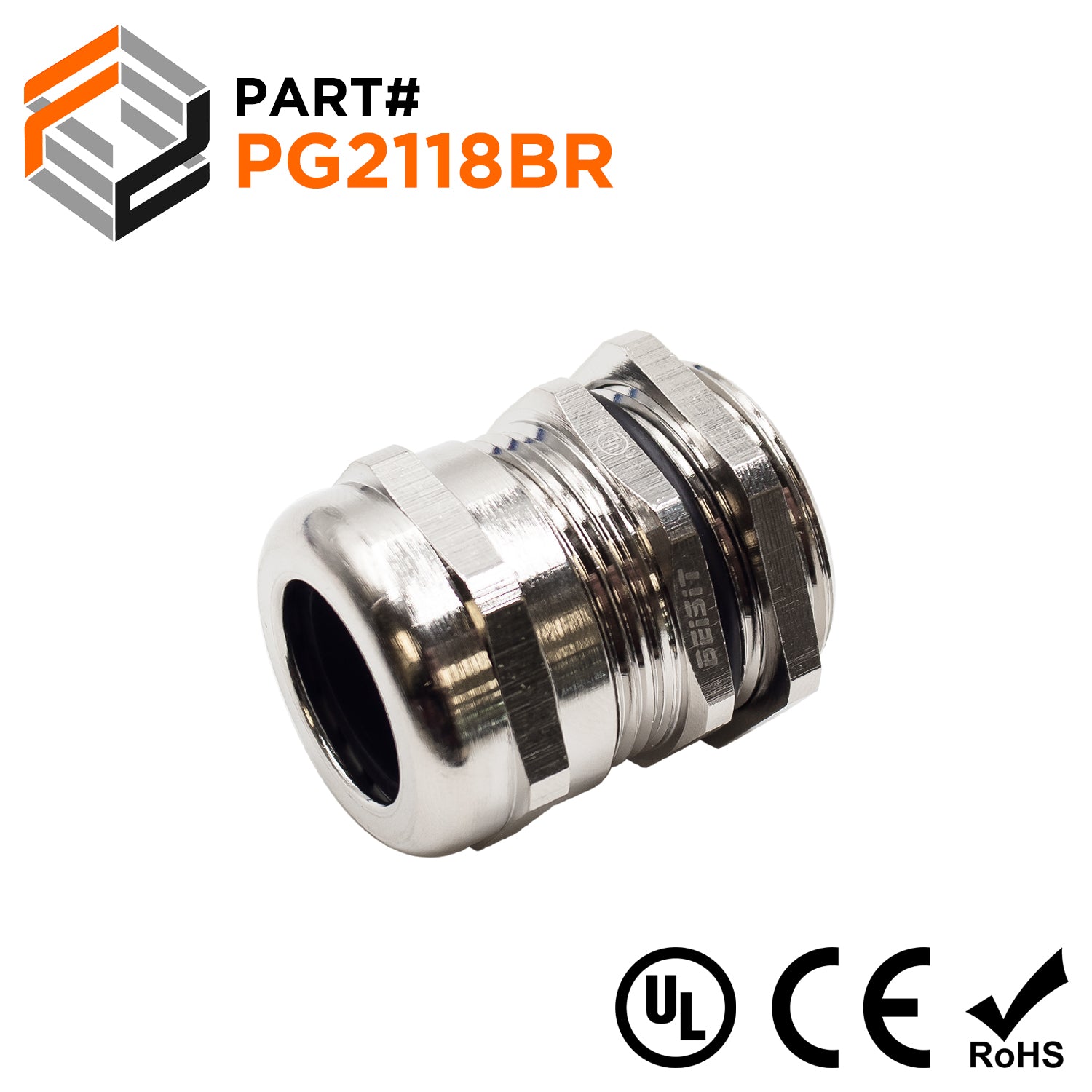

PG21 Brass Cable Gland - 13-18mm - PG2118BR
Original price
$7.44
-
Original price
$7.44
Original price
$7.44
$7.44
-
$7.44
Current price
$7.44
SKU PG2118BR
Availability:
in stock, ready to be shipped
PG Thread Metal Cable Gland (Includes o-ring and locknut)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | PG21 |
| Cable Range: | 13-18mm |
| C1: | 28.1mm (1.12") |
| C2: | 18.4mm (0.72") |
| D2: | 18.4mm (0.72") |
| B1: | 18.4mm (0.72") |
| L1: | 11.8mm (0.46") |
| L2: | 23mm (0.91") |
| L3: | 16.4mm (0.65") |
| Material: | Nickel-Plated Brass |
| Ingress Protection: | IP68 |
| Flammability: | PA (Nylon), UL 94 |
| Protection: | IP68 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
