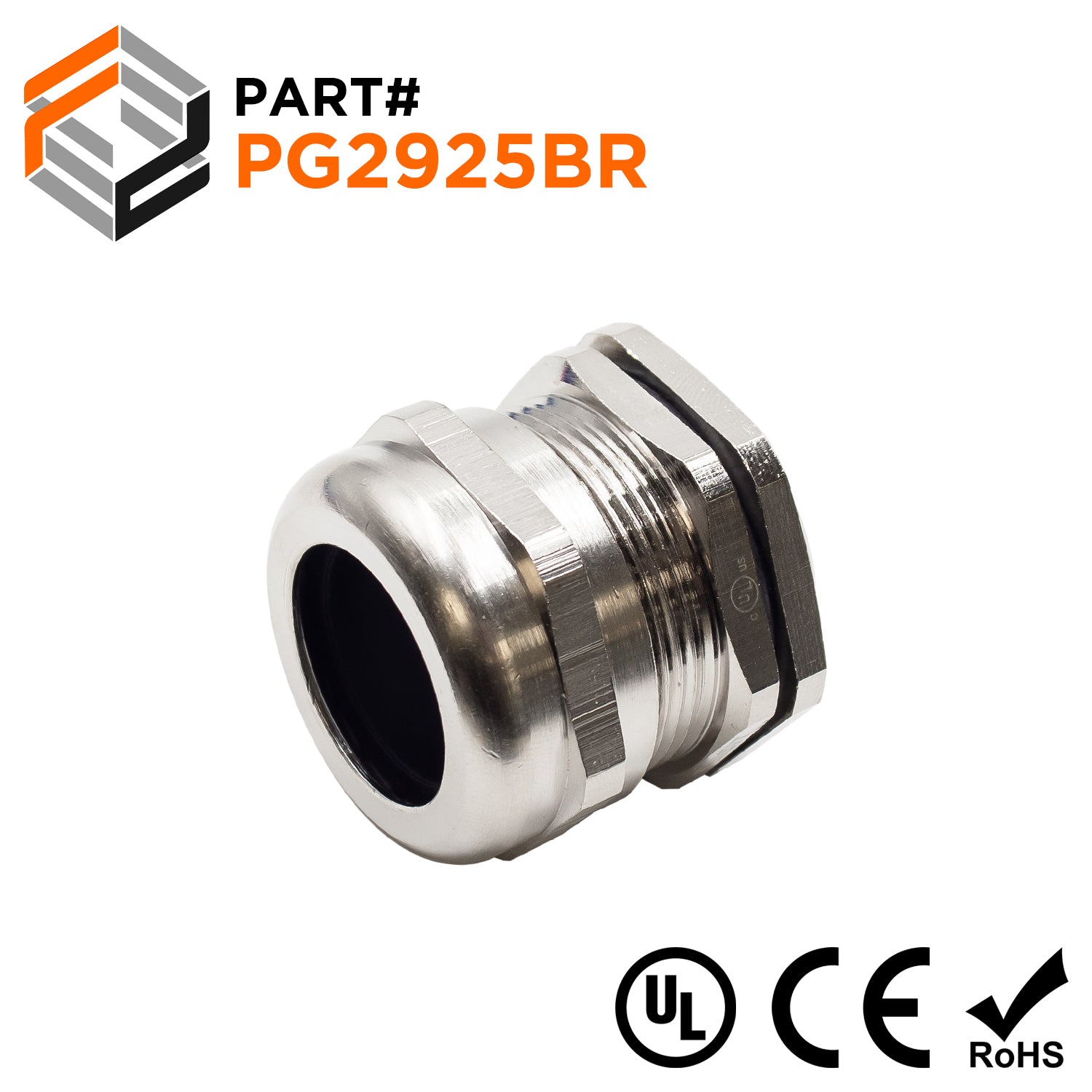

PG29 Brass Cable Gland - 18-25mm - PG2925BR
Original price
$12.46
-
Original price
$12.46
Original price
$12.46
$12.46
-
$12.46
Current price
$12.46
SKU PG2925BR
Availability:
in stock, ready to be shipped

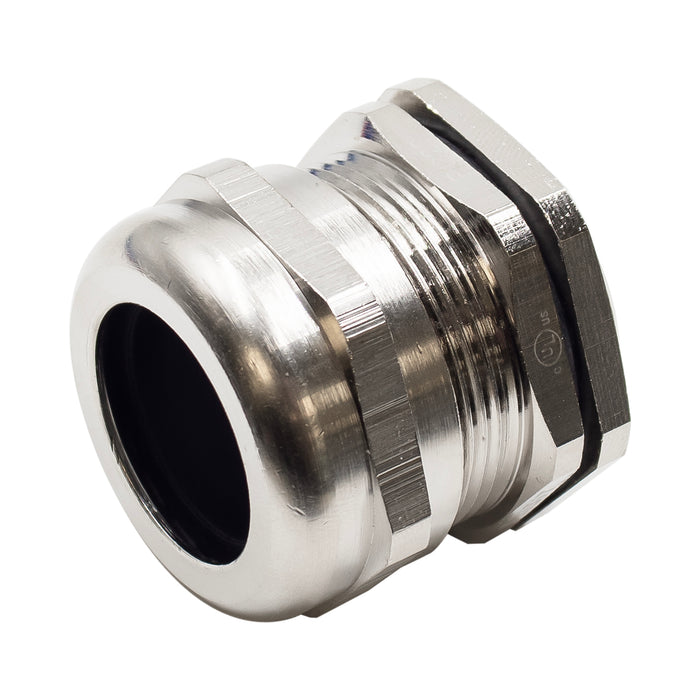

PG Thread Metal Cable Gland (Includes o-ring but locknut is sold separately. See bundle below for complete accessories)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | PG29 |
| Cable Range: | 18-25mm |
| C1: | 36.8mm (1.45") |
| C2: | 25.3mm (1.00") |
| D2: | 25.3mm (1.00") |
| B1: | 25.3mm (1.00") |
| L1: | 7.9mm (0.31") |
| L2: | 27.6mm (1.09") |
| L3: | 18.8mm (0.74") |
| Material: | Nickel-Plated Brass |
| Flammability: | PA (Nylon), UL 94 |
| Ingress Protection: | IP68 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
