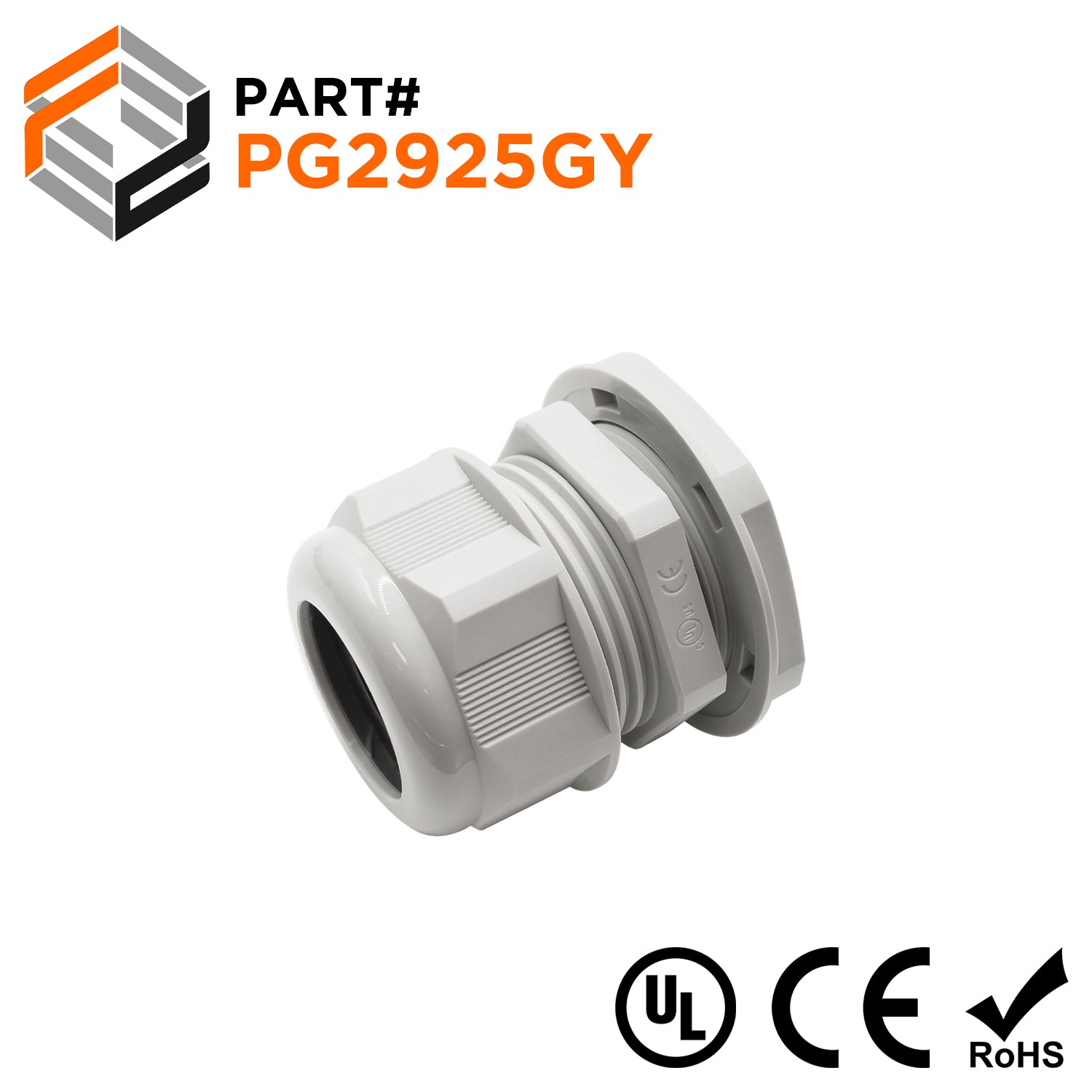

PG29 Nylon Cable Glands - 18-25mm - Gray - PG2925GY
Original price
$2.34
-
Original price
$2.34
Original price
$2.34
$2.34
-
$2.34
Current price
$2.34
SKU PG2925GY
Availability:
in stock, ready to be shipped
PG Thread Gray Cable Gland (Does not include o-ring or locknut)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | PG29 |
| Cable Range: | 18-25mm |
| Color: | Gray |
| C1: | 37mm (1.46") |
| C2: | 29mm (1.14") |
| D2: | 25.4mm (1.00") |
| B1: | 25.4mm (1.00") |
| L1: | 11mm (0.43") |
| L2: | 33.5mm (1.32") |
| L3: | 23mm (0.91") |
| Material: | UL Approved 94UV-2 |
| Ingress Protection: | IP68 |
| Flammability: | PA (Nylon), UL 94 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
