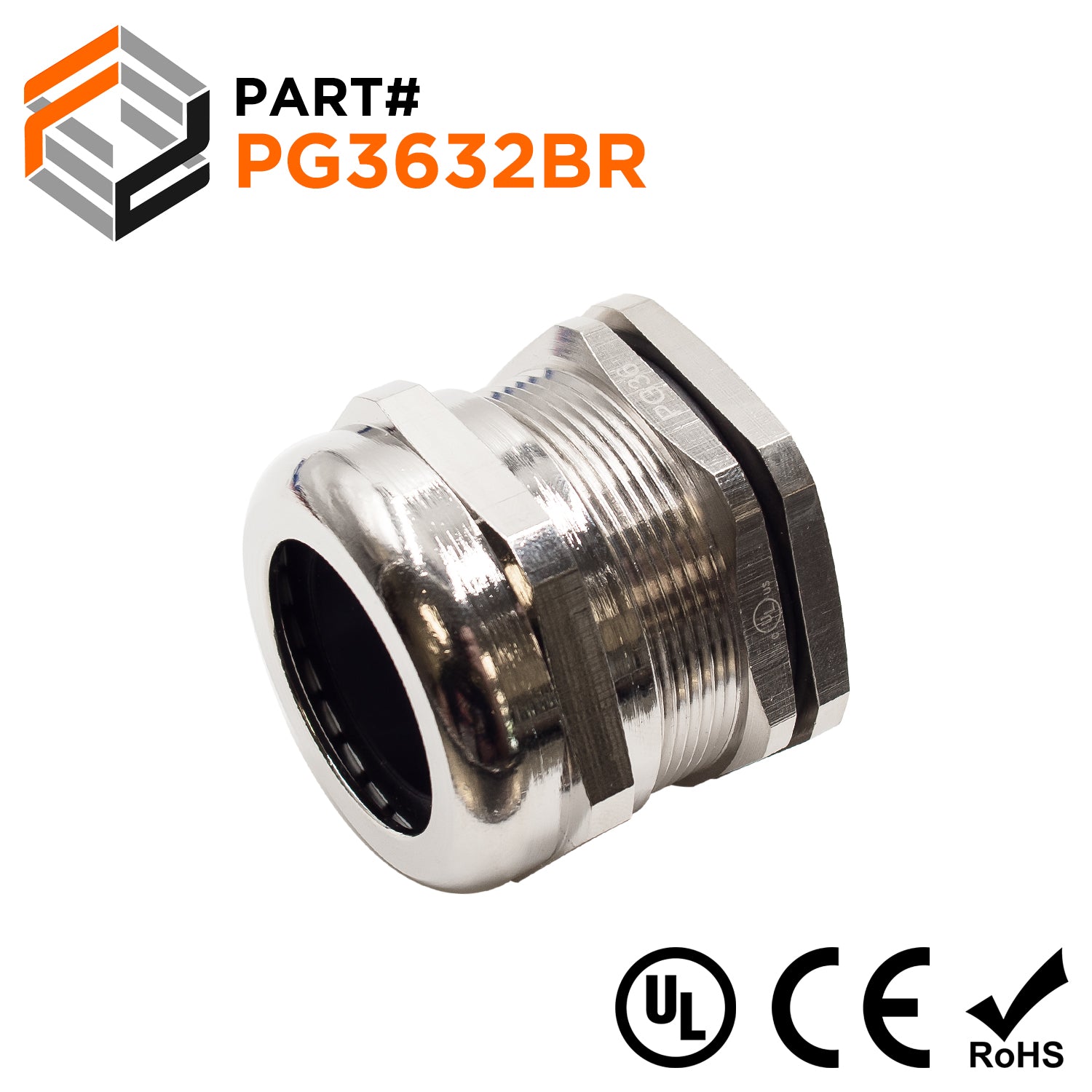

PG36 Brass Cable Gland - 18-25mm - PG3632BR

$21.25
SKU PG3632BR
Piece Quantity
PG Thread Metal Cable Gland (Includes o-ring but locknut is sold separately. See bundle below for complete accessories)

Dimensions & Features:

Thread Size: PG36
Cable Range: 18-25mm
C1: 46.8mm (1.84")
C2: 33.3mm (1.31")
D2: 33.3mm (1.31")
B1: 33.3mm (1.31")
L1: 7.7mm (0.30")
L2: 34.0mm (1.33")
L3: 22.0mm (0.87")
Material: Nickel-Plated Brass
Flammability: PA (Nylon), UL 94
Ingress Protection: IP68
Hermetic Seal: NBR (Nitrile Rubber)
O-Ring: EPDM
Working Temperature: -40°C to 105°C
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
