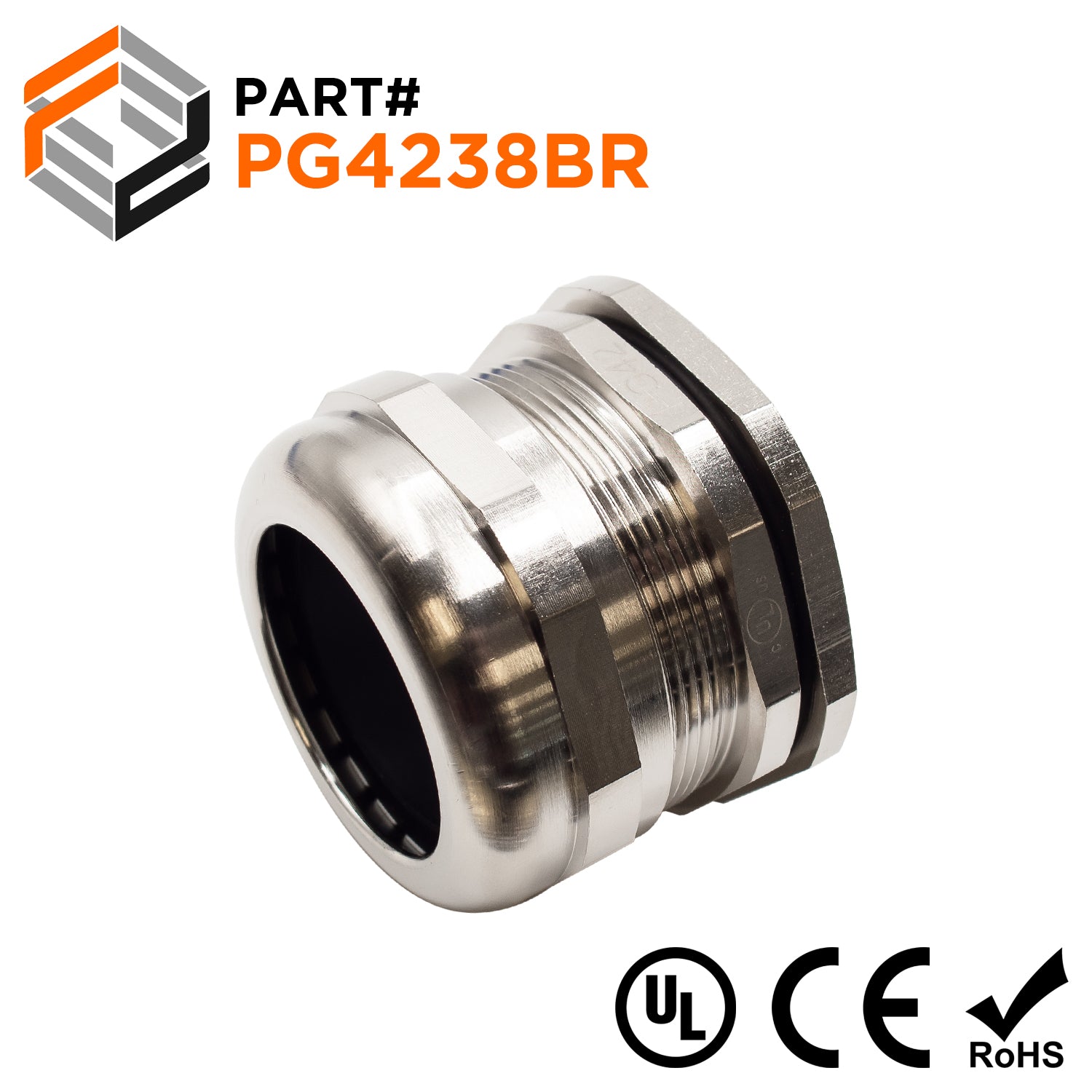

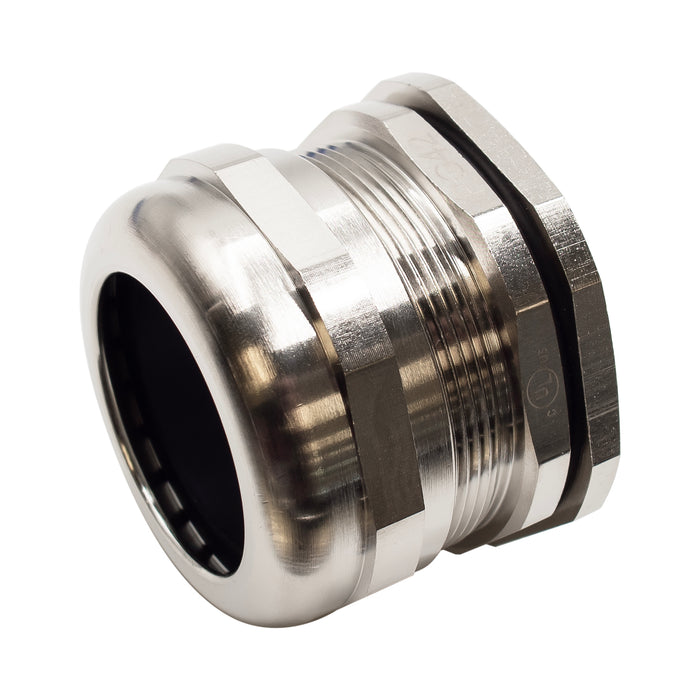

PG42 Brass Cable Gland - 32-38mm - PG4238BR

$26.92
SKU PG4238BR
Piece Quantity
PG Thread Metal Cable Glands
DIMENSIONS AND FEATURES
Product Name
PG4238BR Flammability
PA (NYLON), UL 94
Material Nickel Plated Brass Hermetic seal NBR
Thread Size PG42 O-Ring EPDM
Cable Range 32mm - 38mm Protection Degree IP68-10 Pressure (Rotate Position)
D1 52.1mm(2.05") RoHs Conformant
Yes
D2
38.6mm(1.52") CE Certified
Yes
B1 39.1mm(1.54") UL Recognized Yes
L1 8.9mm(0.35")
L2
27.5mm(1.08")
L3 23.5mm(0.93")
Working Temperature -40℃ to 100℃ - Instantaneous Heat Resistance up to 120℃


TECHNICAL DRAWING
