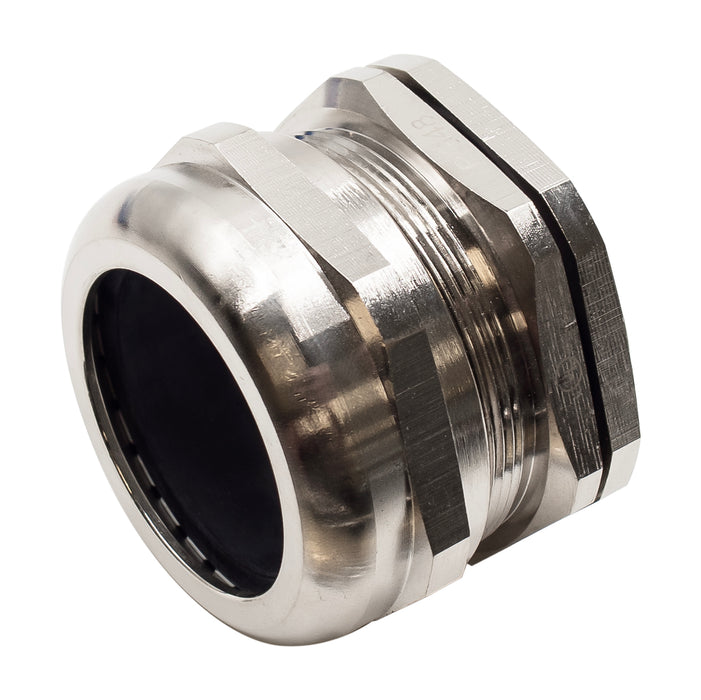

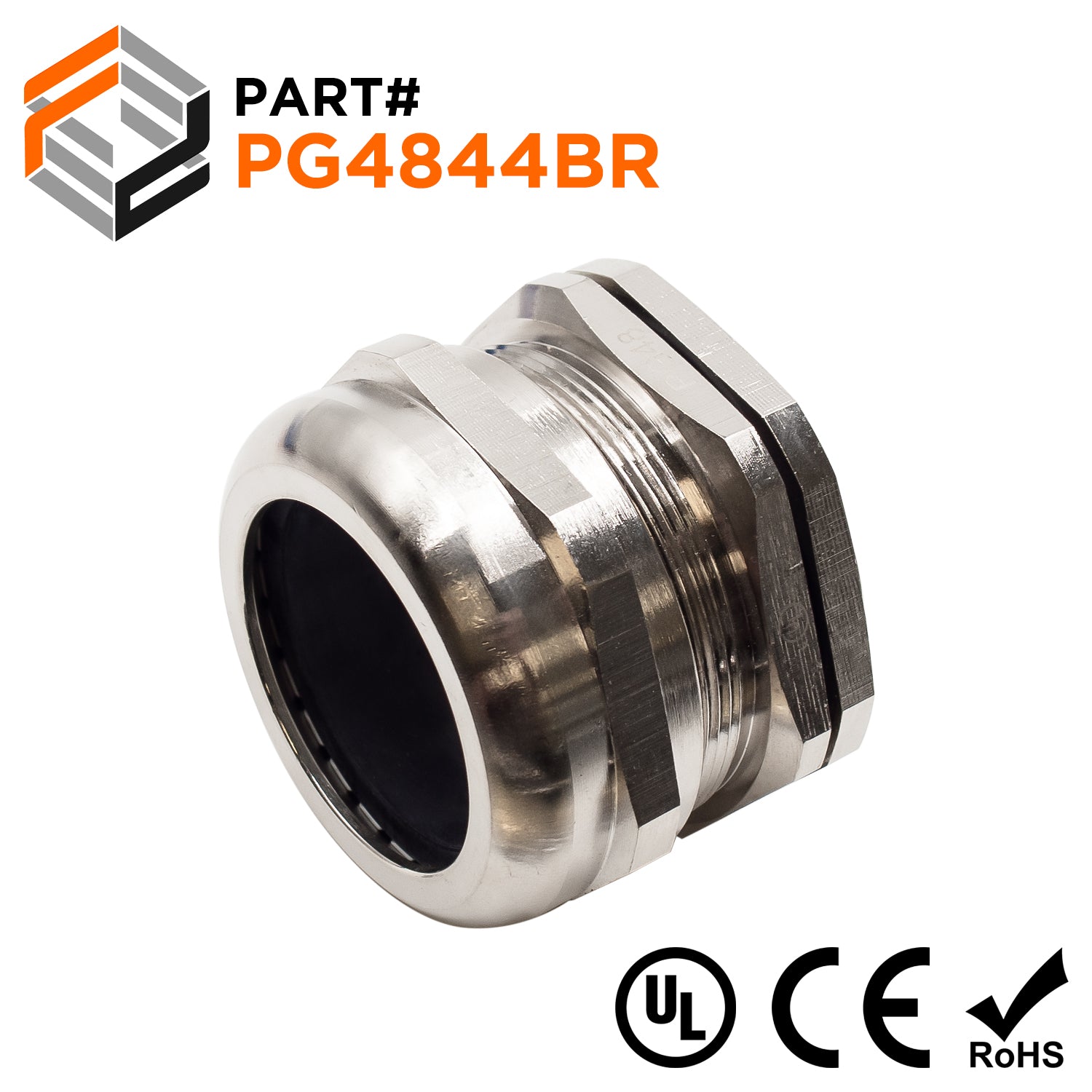

PG48 Brass Cable Gland - 37-44mm - PG4844BR
Original price
$44.20
-
Original price
$44.20
Original price
$44.20
$44.20
-
$44.20
Current price
$44.20
SKU PG4844BR
Availability:
in stock, ready to be shipped

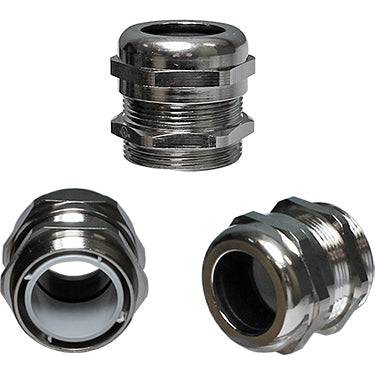

PG Thread Metal Cable Gland (Includes o-ring but locknut is sold separately. See bundle below for complete accessories)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | PG48 |
| Cable Range: | 37-44mm |
| C1: | 59mm (2.32") |
| C2: | 44.5mm (1.75") |
| D2: | 44.5mm (1.75") |
| B1: | 44.5mm (1.75") |
| L1: | 9.8mm (0.38") |
| L2: | 36.3mm (1.43") |
| L3: | 24.9mm (0.98") |
| Material: | Nickel-Plated Brass |
| Flammability: | PA (Nylon), UL 94 |
| Ingress Protection: | IP68 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
