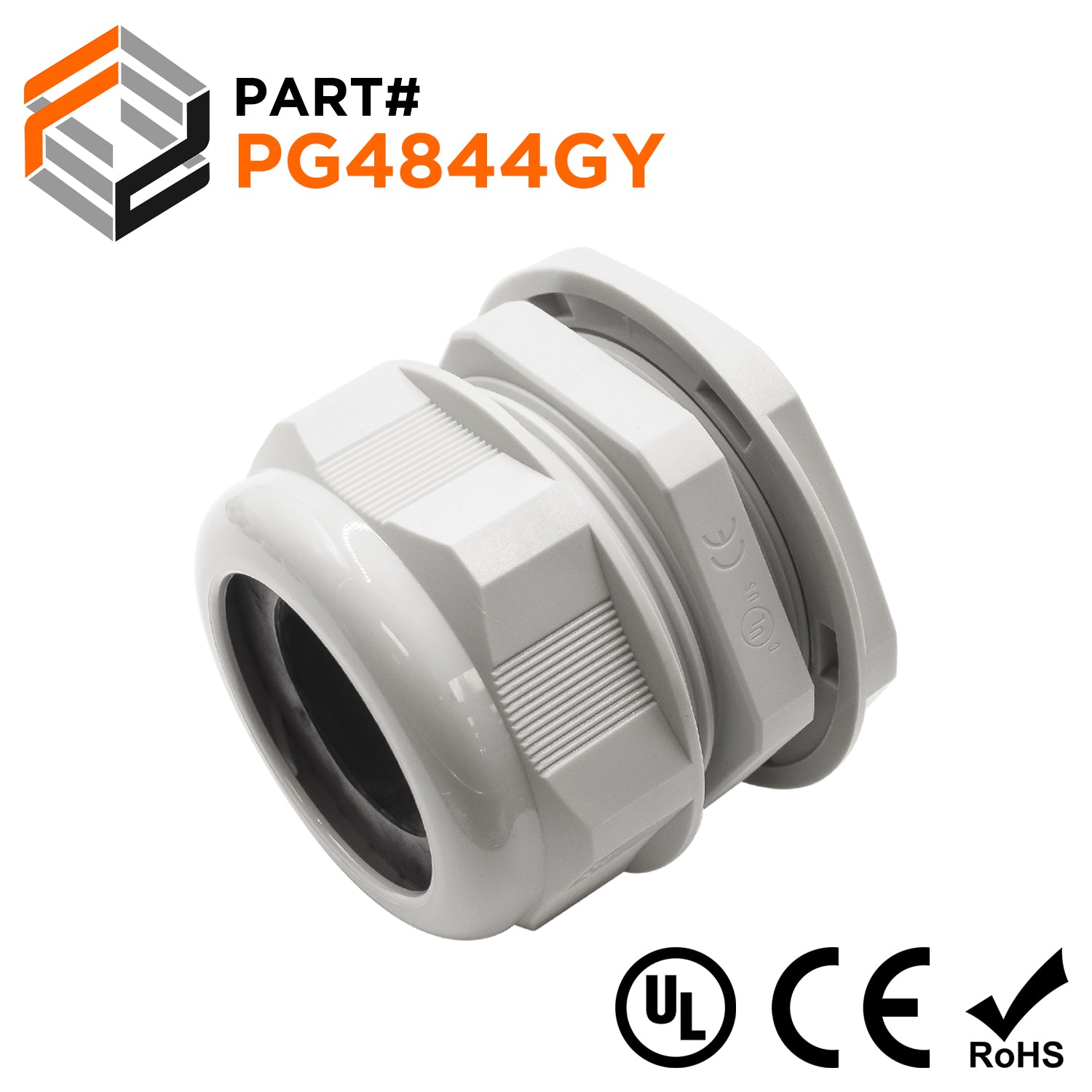

PG48 Nylon Cable Glands - 37-44mm - Gray - PG4844GY
Original price
$6.88
-
Original price
$6.88
Original price
$6.88
$6.88
-
$6.88
Current price
$6.88
SKU PG4844GY
Availability:
in stock, ready to be shipped
PG Thread Gray Cable Gland (Does not include o-ring or locknut)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | PG48 |
| Cable Range: | 37-44mm |
| Color: | Gray |
| C1: | 59.3mm (2.33") |
| C2: | 51.4mm (2.02") |
| D2: | 44.4mm (1.75") |

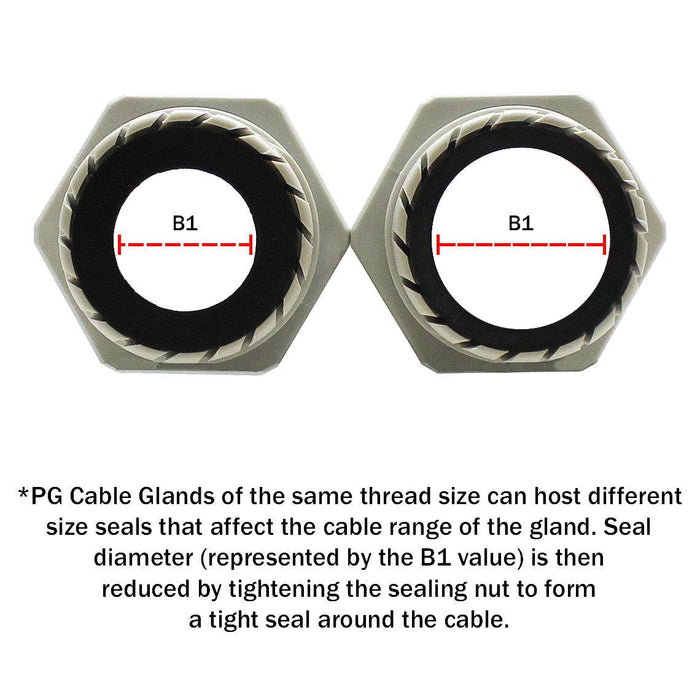

| B1: | 44.4mm (1.75") |
| L1: | 14mm (0.55") |
| L2: | 42mm (1.65") |
| L3: | 30mm (1.18") |
| Material: | UL Approved 94UV-2 |
| Ingress Protection: | IP68 |
| Flammability: | PA (Nylon), UL 94 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
