PVC304-12250 - Grade 304 PVC Coated Steel Tie - 0.47x10" (12x250mm) - Ferrules Direct

PVC304-12250 - 10" Standard PVC Coated Stainless Steel Cable Ties, 200lb Tensile Strength, 304 Grade, UL Recognized, 50-Pack

$24.94 - $24.94
$24.94
$24.94 - $24.94
$24.94
SKU PVC304-12250
Availability:
in stock, ready to be shipped
Pack Quantity: 50 Pieces
true

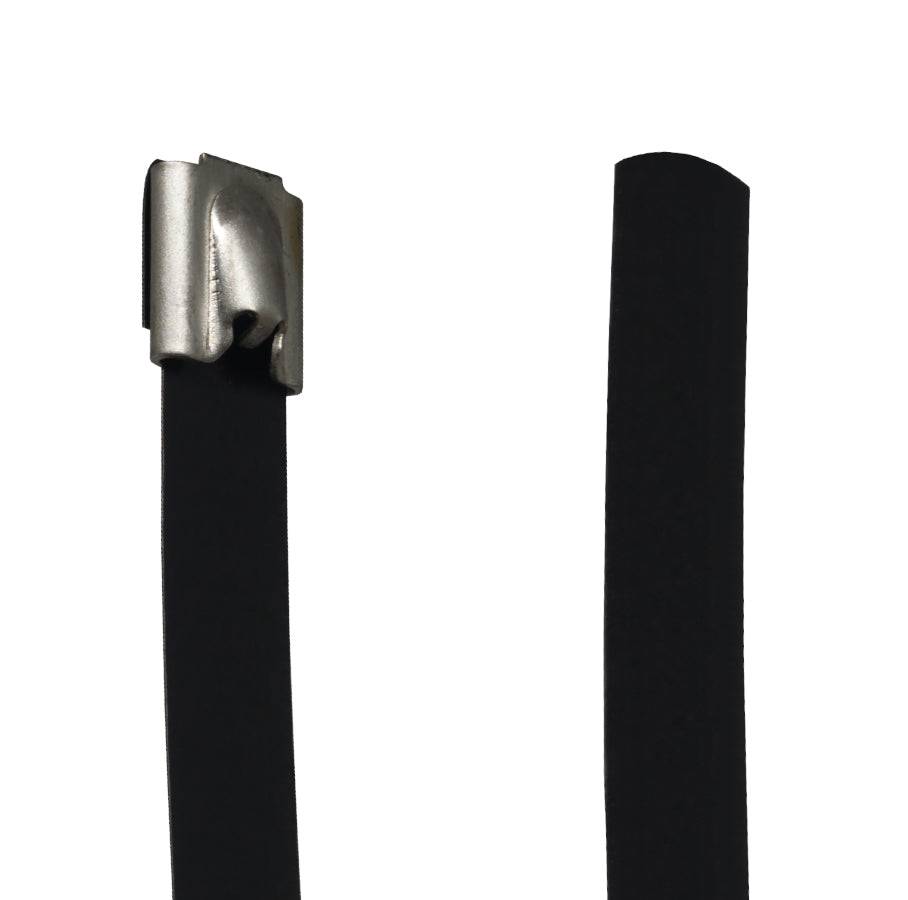

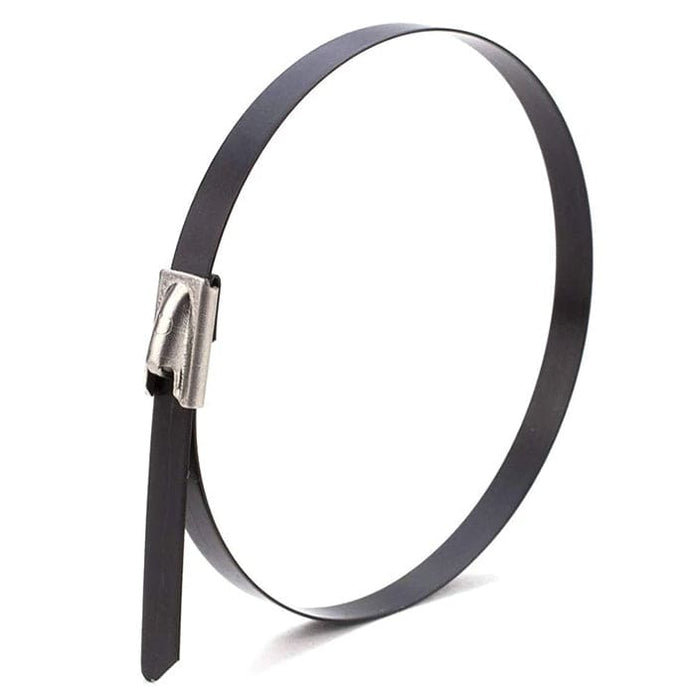

PVC COATED STAINLESS STEEL CABLE TIES - STANDARD SERIES

PVC Coated Stainless Steel Cable Ties are the perfect solution for bundling wires or hoses in heavy duty applications where corrosion, weathering, vibration, and temperature extremes are a common concern. These parts are made from flame retardant stainless steel and are very easy to install with a low-profile ball locking head design.

  • Grade 304 Stainless Steel  ✓
  • PVC Coating ✓
  • Ball Lock Self-Locking Head ✓
  • Flame Retardant ✓
  • Temperature Rating: -40°F to +1000°F ✓
  • Low-Profile ✓
  • No Tools Required for Installation ✓
  • UL Approved ✓

DIMENSIONS & FEATURES:

Length: 10" (250mm)
Width: 0.50" (12.7mm)
Tensile Strength: 200-lbs (90.71kg)
Minimum Bundle Diameter: .59" (15mm)
Maximum Bundle Diameter: 2.49" (63mm)
Material: Grade 304 Stainless Steel
Coating: PVC
Operating Temperature: -40oF to 302oF (-40oC to 150oC)
UV Resistant: Yes
Chemical Resistant: Yes
UL Approved: Yes


DRAWING:

Documents

Click to view product spec sheet:






COMPARE TO THESE PARTS:
