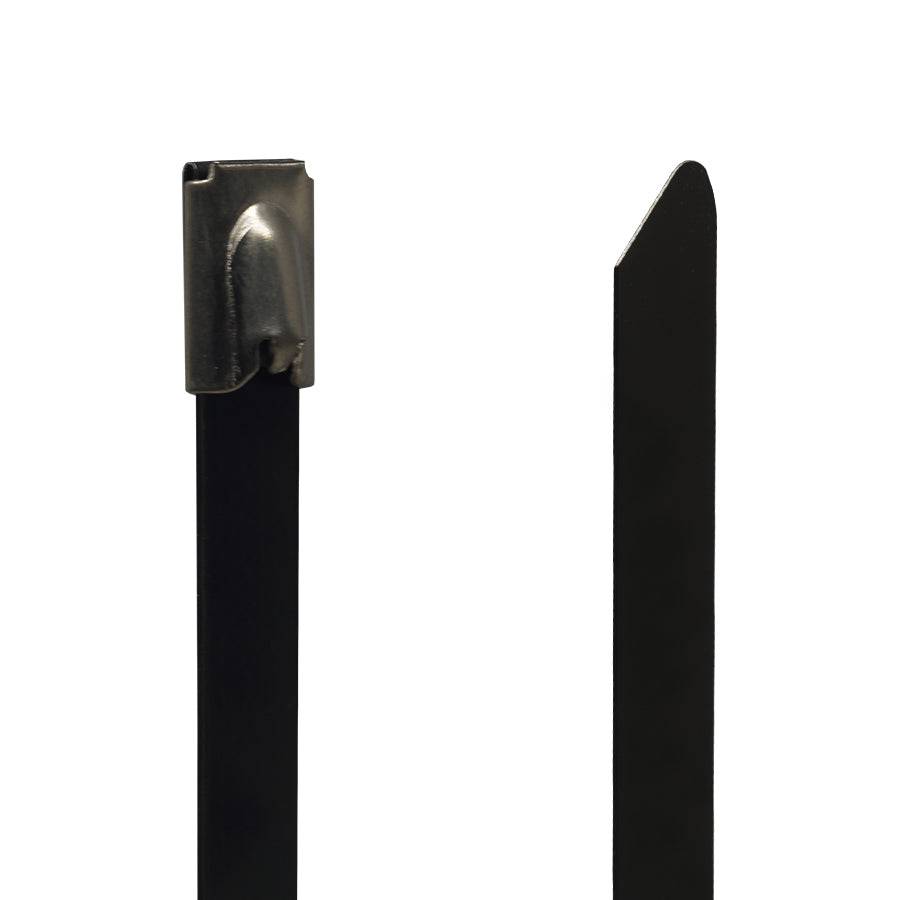

PVC304-79600 - Grade 304 PVC Coated Steel Tie - 0.31x24" (7.9x600mm)
Original price
$16.34
-
Original price
$16.34
Original price
$16.34
$16.34
-
$16.34
Current price
$16.34
SKU PVC304-79600
Availability:
in stock, ready to be shipped
Cable ties can be used to bundle and/or secure any number of things. General use fastener.
Self Locking Mechanism
Smooth rounded edges for additional protection
Fire proof
UV Resistant
Halogen free
Ideal in harsh environments, ie. (oil, mining and chemical, ship building, power stations, etc..)
Easy to install
More durable and stronger then nylon cable ties
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Length: | 600mm (23.7") |
| Width: | 7.9mm (0.31") |
| Thickness: | 0.35mm (0.013") |
| Color: | Black |
| Max Bundle Diameter: | 154mm (6.07") |
| Max Tensile Strength: | 180lbs (800N) |
| Material: | Steel Grade 304 |
| Coating: | PVC |
| Service Temperature: | -80°C to 150°C (-112°F to 302°F) |
Technical Drawing:
