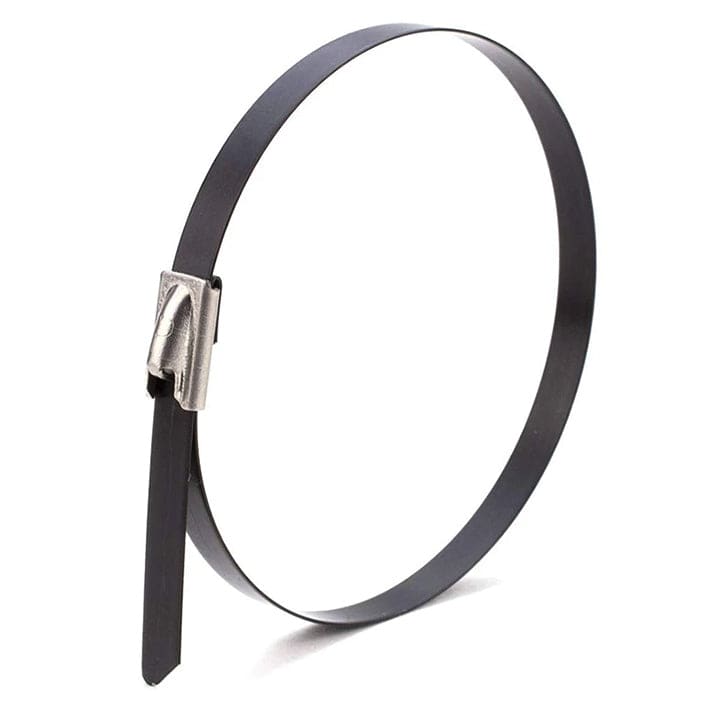

10" PVC Coated Stainless Steel Cable Ties, Standard, 200lb Tensile, 316 Grade, UL Approved, 50-Pack - PVC316-46250
Original price
$14.92
-
Original price
$14.92
Original price
$14.92
$14.92
-
$14.92
Current price
$14.92
SKU PVC316-46250
Availability:
in stock, ready to be shipped
PVC COATED STAINLESS STEEL CABLE TIES - STANDARD SERIES
PVC Coated Stainless Steel Cable Ties are the perfect solution for bundling wires or hoses in heavy duty applications where corrosion, weathering, vibration, and temperature extremes are a common concern. These parts are made from flame retardant stainless steel and are very easy to install with a low-profile ball locking head design.
- Grade 316 Stainless Steel ✓
- PVC Coating ✓
- Ball Lock Self-Locking Head ✓
- Flame Retardant ✓
- Temperature Rating: -40°F to +1000°F ✓
- Low-Profile ✓
- No Tools Required for Installation ✓
- UL Approved ✓
DIMENSIONS & FEATURES:
| Length: | 10" (250mm) |
| Width: | 0.18" (4.6mm) |
| Tensile Strength: | 200-lbs (90.71kg) |
| Minimum Bundle Diameter: | .59" (15mm) |
| Maximum Bundle Diameter: | 2.49" (63mm) |
| Material: | Grade 316 Stainless Steel |
| Coating: | PVC |
| Operating Temperature: | -40oF to 302oF (-40oC to 150oC) |
| UV Resistant: | Yes |
| Chemical Resistant: | Yes |
| UL Approved: | Yes |
DRAWING:
Documents
Click to view product spec sheet:
