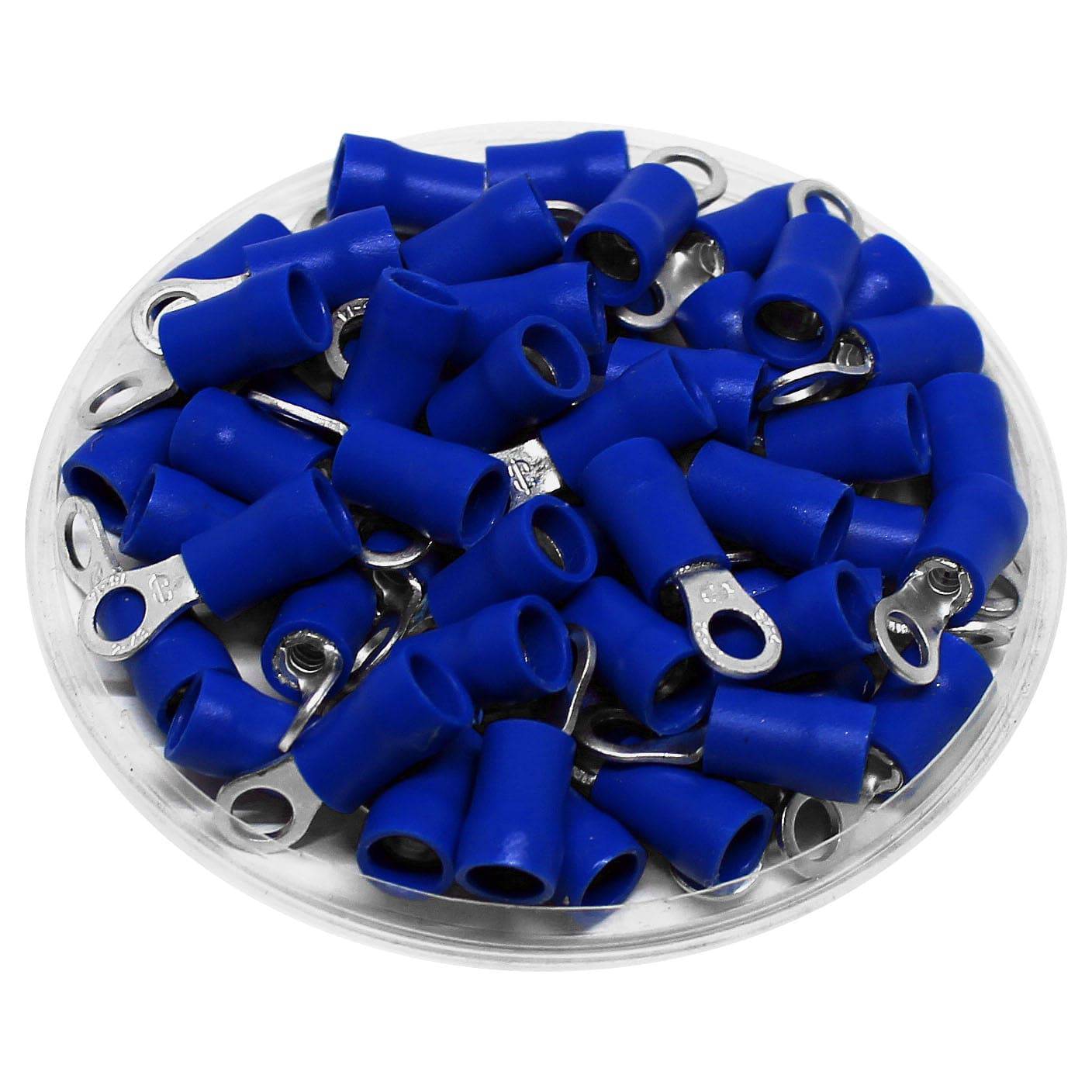

RDS2-3.2 - Double Crimp Vinyl Insulated Ring Terminals - 16-14 AWG - #5 Stud

Name: RDS2-3.2 - Double Crimp Vinyl Insulated Ring Terminals - 16-14 AWG - #5 Stud
Brand: Ferrules Direct
SKU: RDS2-32
Price: 9.94 USD
Availability: InStock

$9.94 - $9.94

$9.94

$9.94 - $9.94

$9.94

SKU RDS2-32

Availability:

in stock, ready to be shipped

Quantity

true

DOUBLE CRIMP VINYL INSULATED RING TERMINALS

Ring terminals offer a tight and secure connection in high vibration areas. The insulated sleeve is securely fastened to metal grip sleeve providing protection to the crimp joint. Color coded according to industry standards.

COMPARE TO THESE PARTS:

/* if no javascript: get back ATC button */ body:not(.spo-loaded) [data-shopify="payment-button"], body:not(.spo-loaded).template-product form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-collection form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-index form[action="/cart/add"] [type=submit], body:not(.spo-loaded) form[action="/cart/add"] [type=submit] {opacity: 1; pointer-events: all} body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) button, body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="submit"], body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="button"], body:not(.spo-loaded) [name="checkout"], body:not(.spo-loaded) [name="goto_pp"], body:not(.spo-loaded) [name="goto_amazon_payments"] {opacity: 1; pointer-events: all}

PRODUCT INFORMATION
Wire Size	16-14 AWG
Stud Size	#6 Stud
Overall Length (L)	18.9mm (0.74")
Full Barrel Length (E)	10.5mm (0.41")
Stud Center-to-Barrel (F)	5.6mm (0.22")
Insulation Inner Diameter (D)	5.0mm (0.20")
Terminal Inner Diameter (D1)	2.3mm (0.09")
Stud Diameter (D2)	3.2mm (0.13")
Ring Thickness (T)	0.8mm (0.03")
Material	Tin Plated Copper
Insulation Material	Vinyl
Maximum Electrical Rating	600 Volts
Maximum Electrical Current	30AMP
Maximum Operating Temperature	105°C (221°F)
UL File Number	E96029
UL Recognized	Yes
CE Certified	Yes
RoHS Compliant	Yes
REACH Compliant	Yes
Recommended Hand Tools	FDT10010 \| FDT10011 \| FDT10012 \| QCL3C
Recommended Crimping Machines	FD110K
