SB1010 - 10 AWG Compression Lug - #10 Stud Size - SB1010 - Ferrules Direct

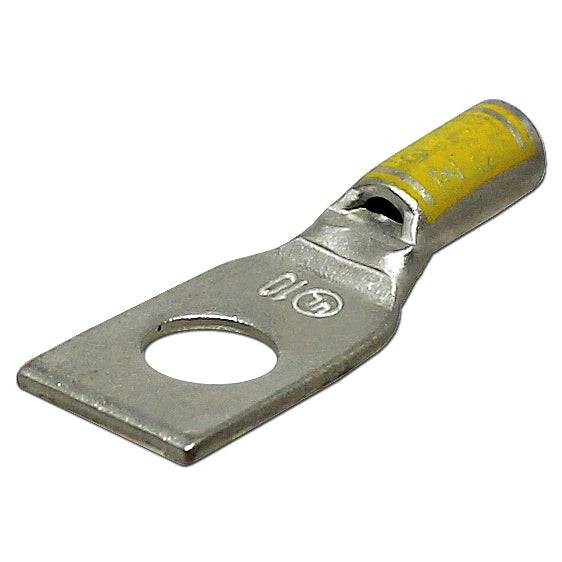

SB1010 - 10 AWG Compression Lug, Short Barrel, #10 Stud - 1 Piece

Name: SB1010 - 10 AWG Compression Lug, Short Barrel, #10 Stud - 1 Piece
Brand: Ferrules Direct
SKU: SB1010
Price: 0.4 USD
Availability: InStock
Rating: 5.0 (1 reviews)

$0.40 - $0.40

$0.40

$0.40 - $0.40

$0.40

SKU SB1010

Availability:

in stock, ready to be shipped

Quantity

true

SHORT BARREL COMPRESSION LUGS

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

COMPARE TO THESE PARTS:

/* if no javascript: get back ATC button */ body:not(.spo-loaded) [data-shopify="payment-button"], body:not(.spo-loaded).template-product form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-collection form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-index form[action="/cart/add"] [type=submit], body:not(.spo-loaded) form[action="/cart/add"] [type=submit] {opacity: 1; pointer-events: all} body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) button, body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="submit"], body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="button"], body:not(.spo-loaded) [name="checkout"], body:not(.spo-loaded) [name="goto_pp"], body:not(.spo-loaded) [name="goto_amazon_payments"] {opacity: 1; pointer-events: all}

PRODUCT INFORMATION
Wire Size	10 AWG
Stud Size (E)	#10 Stud
Cut Sheet (PDF)	Download file
Barrel Type	Short Barrel
Material	Copper (Tin Plated)
Color	Yellow
Overall Length (L)	28.6mm (1.13")
Tab Length (L1)	15.2mm (0.60")
Tab Width (D)	8.1mm (0.32")
Outer Diameter (D1)	5.6mm (0.22")
Inner Diameter (D2)	3.3mm (0.13")
Barrel Length (B)	10.1mm (0.40")
Thickness (F)	1.9mm (0.08")
Seam Style	Seamless
Inspection Hole	Yes
Recommended Conductor Material	Copper
Maximum Operating Temperature	194°F (90°C)
Maximum Electrical Rating	35 KV
Maximum Electrical Current	50A
UL Recognized	Yes
CE Certified	Yes
RoHS Compliant	Yes
REACH Compliant	Yes
Recommended Hand Tools	LY2045E LY-2045B FDHX50
Recommended Crimping Machines	FEK50 FD300K
