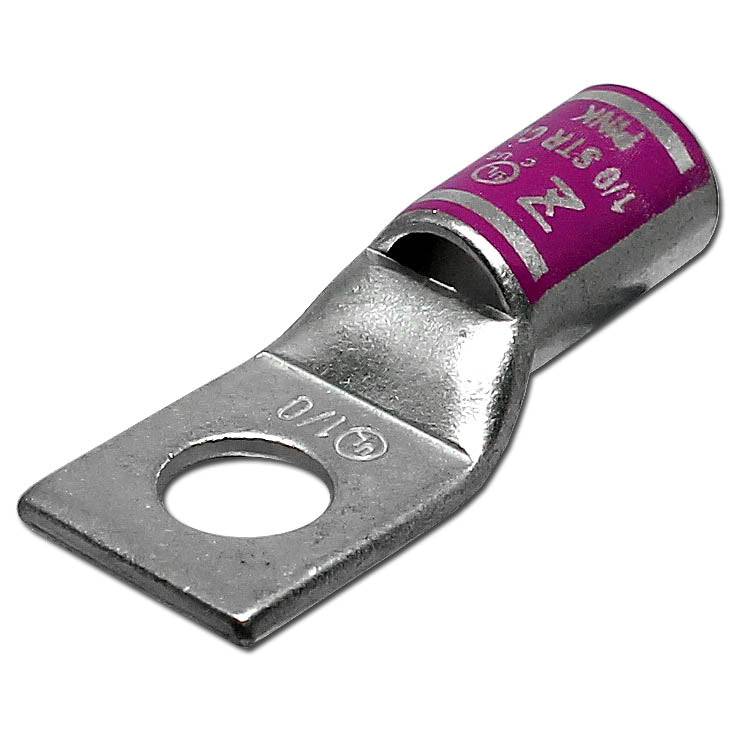

SB1014 - 1/0 AWG Compression Lug - 1/4" Stud Size
Original price
$1.93
-
Original price
$1.93
Original price
$1.93
$1.93
-
$1.93
Current price
$1.93
SKU SB1014
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 1/0 AWG |
| Stud Size: | 1/4" Stud |
| Color: | Pink |
| L: | 45.1mm (1.80") |
| L1: | 18.4mm (0.70") |
| D: | 18.4mm (0.70") |
| D1: | 13.0mm (0.50") |
| D2: | 10.2mm (0.40") |
| B: | 20.3mm (0.80") |
| E: | 7.1mm (0.30") |
| F: | 2.7mm (0.10") |
| Material: | Tin Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Maximum Amp Rating: | 230A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
