SB10516S - 10 AWG Compression Lug - 5/16" Stud Size - SB10516S - Ferrules Direct

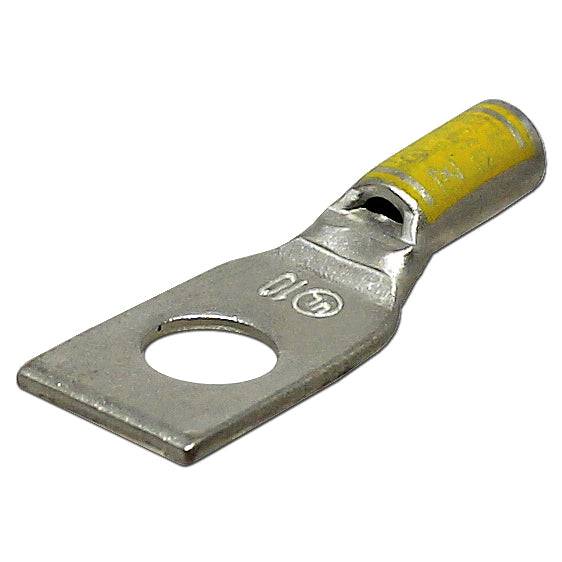

SB10516S - 10 AWG Compression Lug, Short Barrel, 5/16" Stud Size, 1 Piece

Name: SB10516S - 10 AWG Compression Lug, Short Barrel, 5/16" Stud Size, 1 Piece
Brand: Ferrules Direct
SKU: SB10516S
Price: 0.43 USD
Availability: OutOfStock
Rating: 5.0 (1 reviews)

Sold out

$0.43 - $0.43

$0.43

$0.43 - $0.43

$0.43

SKU SB10516S

Availability:

Out of stock

Quantity

false

SHORT BARREL COMPRESSION LUGS

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

COMPARE TO THESE PARTS:

/* if no javascript: get back ATC button */ body:not(.spo-loaded) [data-shopify="payment-button"], body:not(.spo-loaded).template-product form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-collection form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-index form[action="/cart/add"] [type=submit], body:not(.spo-loaded) form[action="/cart/add"] [type=submit] {opacity: 1; pointer-events: all} body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) button, body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="submit"], body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="button"], body:not(.spo-loaded) [name="checkout"], body:not(.spo-loaded) [name="goto_pp"], body:not(.spo-loaded) [name="goto_amazon_payments"] {opacity: 1; pointer-events: all}

PRODUCT INFORMATION
Wire Size	10 AWG
Stud Size (E)	5/16" Stud
Cut Sheet (PDF)	Download file
Barrel Type	Short Barrel
Material	Copper (Tin Plated)
Color	Yellow
Overall Length (L)	32.4mm (1.28")
Tab Length (L1)	19.1mm (0.75")
Tab Width (D)	14.0mm (0.55")
Outer Diameter (D1)	5.6mm (0.22")
Inner Diameter (D2)	3.3mm (0.13")
Barrel Length (B)	10.1mm (0.40")
Thickness (F)	1.1mm (0.05")
Seam Style	Seamless
Inspection Hole	Yes
Recommended Conductor Material	Copper
Maximum Operating Temperature	194°F (90°C)
Maximum Electrical Rating	35 KV
Maximum Electrical Current	50A
UL Recognized	Yes
CE Certified	Yes
RoHS Compliant	Yes
REACH Compliant	Yes
