SB2012 - 2/0 AWG Compression Lug - 1/2" Stud Size
Original price
$2.19
-
Original price
$2.19
Original price
$2.19
$2.19
-
$2.19
Current price
$2.19
SKU SB2012
Availability:
in stock, ready to be shipped

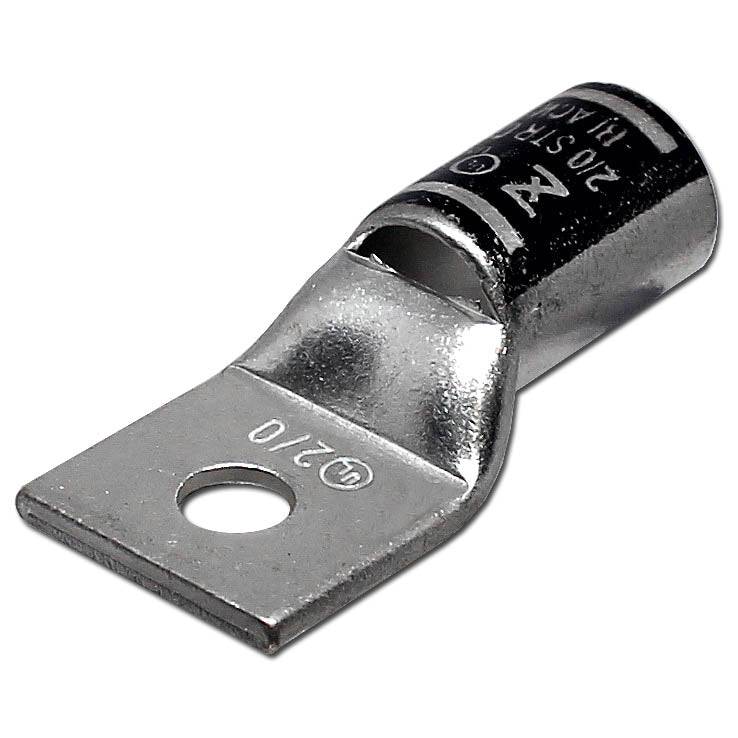

SHORT BARREL COMPRESSION LUGS
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 2/0 AWG |
| Stud Size: | 1/2" Stud |
| Color: | Black |
| L: | 56.4mm (2.20") |
| L1: | 28.7mm (1.10") |
| D: | 20.8mm (0.80") |
| D1: | 14.2mm (0.60") |
| D2: | 11.7mm (0.50") |
| B: | 21.3mm (0.80") |
| E: | 13.1mm (0.50") |
| F: | 2.5mm (0.10") |
| Material: | Tin Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Maximum Amp Rating: | 265A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
| PRODUCT INFORMATION | |
|---|---|
Wire Size |
|
Stud Size (E) A "stud size" of a terminal refers to the diameter of the bolt or stud that the terminal is designed to fit onto.
|
|
 Cut Sheet (PDF) |
|
Barrel Type Compression lugs come in many varieties such as: short barrel, long barrel, 90-degree, etc.
|
|
Material |
|
Color |
|
Overall Length (L) |
|
Tab Length (L1) |
|
Tab Width (D) |
|
Outer Diameter (D1) |
|
Inner Diameter (D2) Measure the outer sheathing of your wire to determine best fitment inside of the ferrule collar.
|
|
Barrel Length (B) |
|
Thickness (F) |
|
Seam Style Some lugs are made from round copper tube (seamless) and others are made from a flat piece that is folded to form a tube (seam).
|
|
Inspection Hole |
|
Recommended Conductor Material This is the recommended material to be used with these terminals.
|
|
Maximum Electrical Rating Maximum voltage that can be continuously applied to a cable or system without causing it to fail.
|
|
Maximum Electrical Current |
|
UL Recognized UL Recognized products are certified by Underwriters Laboratories for use as components of larger systems that are UL Listed.
|
|
CE Certified CE Certified means that a product has been assessed and meets the European Union's (EU) safety, health, and environmental protection requirements.
|
|
RoHS Compliant RoHS compliant means that a product meets the requirements of the Restriction of Hazardous Substances (RoHS) directive.
|
|
REACH Compliant REACH compliant means a company adheres to the European Union's (EU) Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) regulation.
|
|
