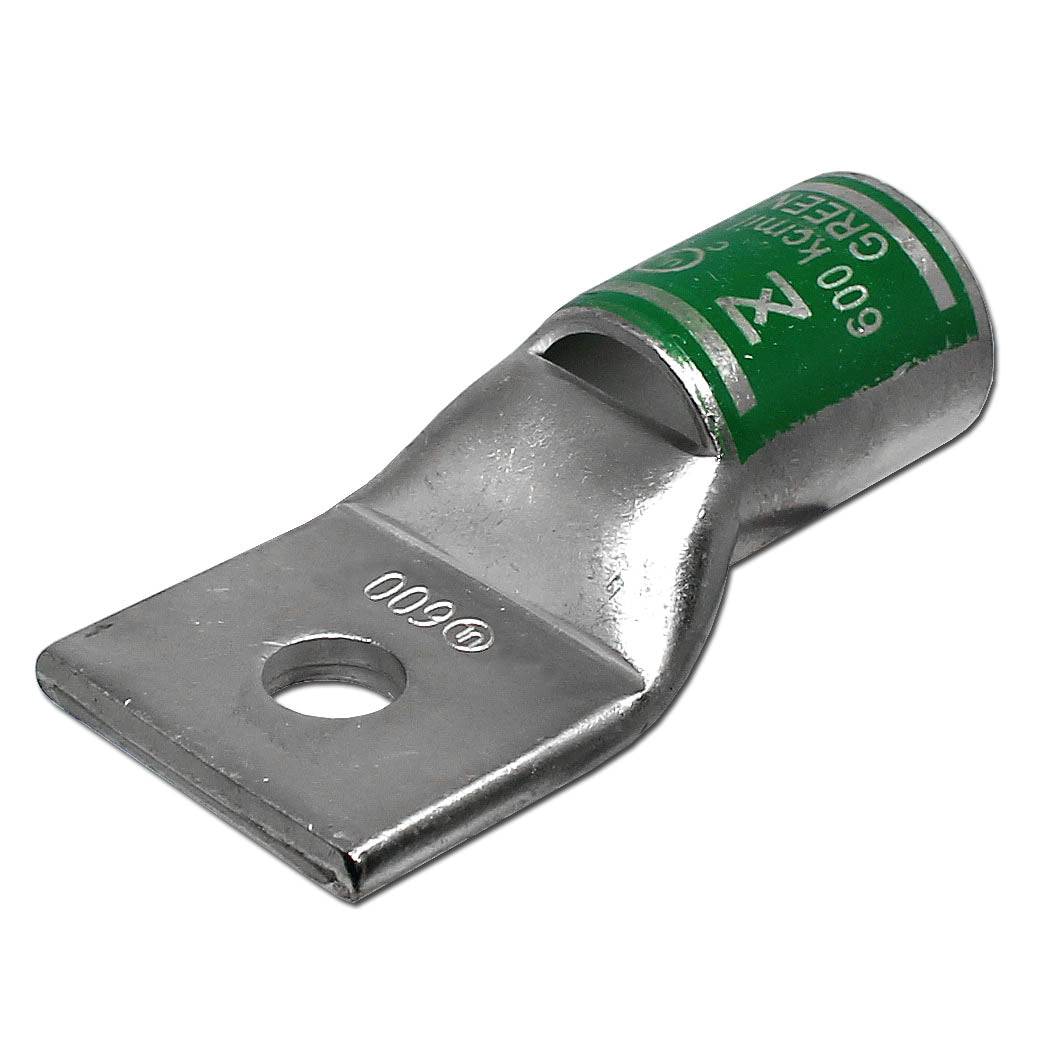

SB60012 - 600MCM Compression Lug - 1/2" Stud Size
Original price
$19.00
-
Original price
$19.00
Original price
$19.00
$19.00
-
$19.00
Current price
$19.00
SKU SB60012
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
| Wire Size: | 600MCM |
| Stud Size: | 1/2" Stud |
| Color: | Green |
| L: | 92.2mm (3.60") |
| L1: | 36.8mm (1.50") |
| D: | 43.7mm (1.70") |
| D1: | 30.1mm (1.19") |
| D2: | 24mm (0.95") |
| B: | 39.4mm (1.60") |
| E: | 13mm (0.50") |
| F: | 6mm (0.24") |
| Material: | Tin Plated Copper |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Temperature Rating: | 90°C |
| Max Electrical Rating: | 35 KV |
| Max Electrical Current: | 420A |
Product Drawing:
Cross References
Cross Reference Parts:None
