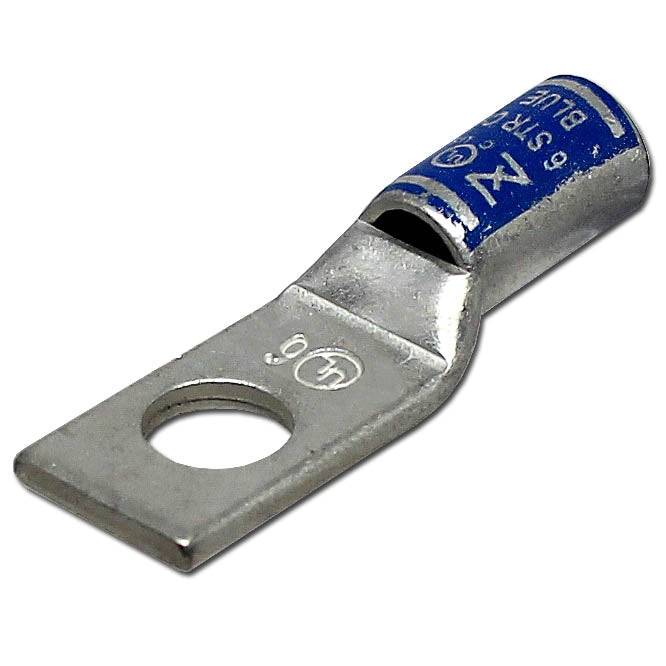

SB612 - 6 AWG Compression Lug - 1/2" Stud Size
Original price
$0.74
-
Original price
$0.74
Original price
$0.74
$0.74
-
$0.74
Current price
$0.74
SKU SB612
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 6 AWG |
| Stud Size: | 1/2" Stud |
| Color: | Blue |
| L: | 45.6mm (1.79") |
| L1: | 28.7mm (1.13") |
| D: | 17.8mm (0.70") |
| D1: | 7.9mm (0.31") |
| D2: | 5.9mm (0.23") |
| B: | 13.7mm (0.54") |
| E: | 13.7mm (0.54") |
| F: | 1.2mm (0.05") |
| Material: | Tin Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Maximum Amp Rating: | 65 Amps |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
