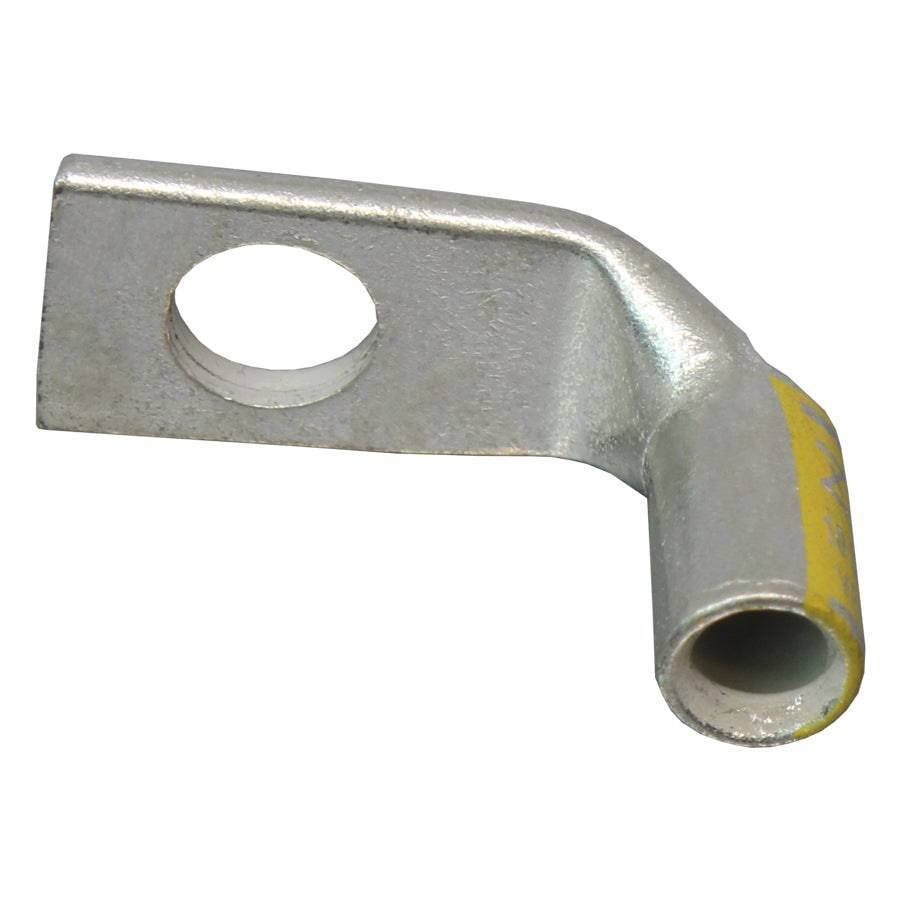

SBF1010 - 90 Degree Short Barrel Compression Lug - 10 AWG - #10 Stud

Original price $0.44 - Original price $0.44
Original price
$0.44
$0.44 - $0.44
Current price $0.44
SKU SBF1010
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
true
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 10 AWG
Color: Yellow
C: 3.3mm (0.13")
E: 5.6mm (0.22")
D: 8.1mm (0.32")
G: 6.4mm (1.85")
B: 10.2mm (0.40")
Terminal Material: Tin-Plated Copper
Stud Size: #10 Stud
Temperature Rating: 90oC
Voltage Rating: 35 KV
Maximum Ampere Rating: 30 Amps
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
