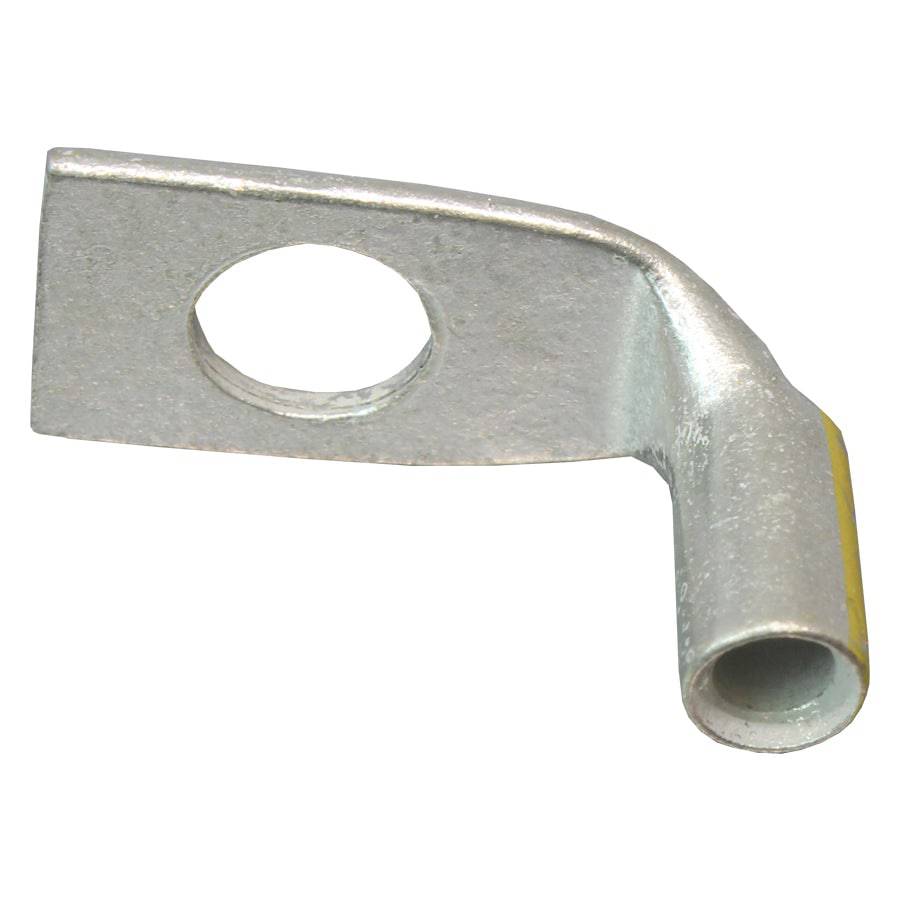

SBF1014S - 90 Degree Short Barrel Compression Lug - 10 AWG - 1/4" Stud

Original price $0.47 - Original price $0.47
Original price
$0.47
$0.47 - $0.47
Current price $0.47
SKU SBF1014S
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 10 AWG
Color: Yellow
C: 3.3mm (0.13")
E: 7.1mm (0.28")
D: 11.2mm (0.44")
G: 8.4mm (0.33")
B: 10.2mm (0.40")
Terminal Material: Tin-Plated Copper
Stud Size: 1/4"
Temperature Rating: 90°C
Voltage Rating: 35KV
Maximum Amp Rating: 30 Amps
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
